Dell Inspiron M531R-5535 Fan Replacement

Geschrieben von: Tony Chen
  • Kommentare: 0
Dell Inspiron M531R-5535 Fan Replacement

Schwierigkeitsgrad

Difficult

Schritte

11

Zeitaufwand

30 - 50 Minuten

Einleitung

Use this guide to replace the fan in your Dell Inspiron M531R-5535 laptop.

The fan is an essential component for preventing the computer from overheating. The fan allows the computer hardware to cool off and make the computer more smoothly.

Make sure to power off your laptop completely and disconnect from any external power source prior to beginning the process.

  1. oJHSIWrBPt35pTnY
    oJHSIWrBPt35pTnY
    vUpDBQIxvNk1tUFW
    vByFZhXsnSVnsuSZ

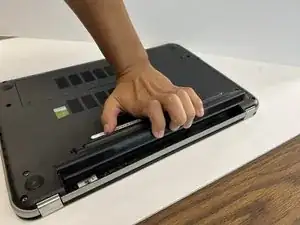

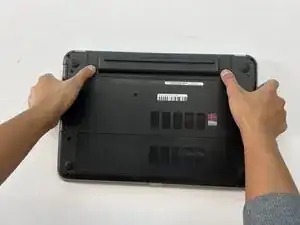

    • Flip the laptop over and unlock the battery.

    • Lift up to remove the battery.

  2. uXGNG5aIQ4P2T6X2
    uXGNG5aIQ4P2T6X2
    1MopMZgHtV1GKQLf

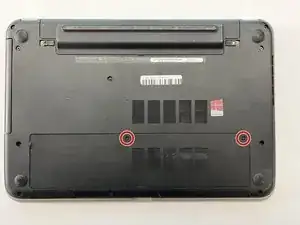

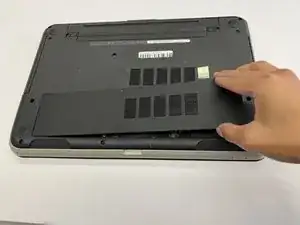

    • Loosen the two Phillips #1 screws to remove the tray.

    • The screws stay in the tray.

  3. aoqdq5ZCNffStAQ4
    aoqdq5ZCNffStAQ4
    eqN2Pq2axEb2ILmL

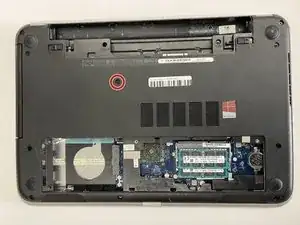

    • Unscrew the 3.6mm Phillips #1 screw.

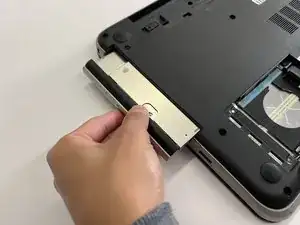

    • Slide the CD Drive out.

  4. 5IsthTJSPGcXMTTO
    5IsthTJSPGcXMTTO
    WjamqYEeKVf5kAmt

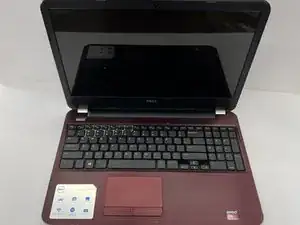

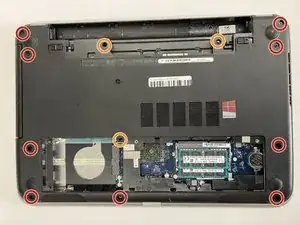

    • Unscrew nine 5.7mm Phillips #1 screws.

    • Unscrew three 5.6mm Phillips #1 screws

    • The three 5.6mm Phillips #1 screws are thinner.

    • Then flip the laptop and open it to see the keyboard.

  5. hBw6OpJYJREKaq5N
    hBw6OpJYJREKaq5N
    2qCWI4wMMfaJdteI

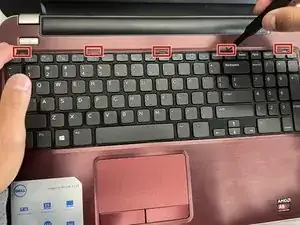

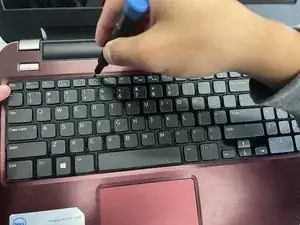

    • Use a nylon spudger or plastic opening tool to press into the highlighted keyboard latches.

  6. EqVrOawsPWrdsVGO
    EqVrOawsPWrdsVGO
    ge5NkRdlWoiKvd2R
    NIg1wWBDLuDImgwl

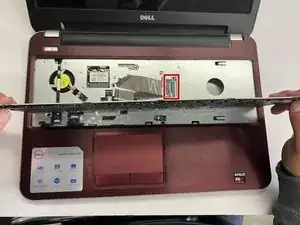

    • Lift up the keyboard.

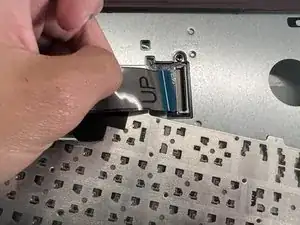

    • Lift up on the black ZIF tab and pull the keyboard ribbon cable free.

  7. SIhL5EfHfknke5N4
    SIhL5EfHfknke5N4
    PTwTqaBLK5pgqG1C

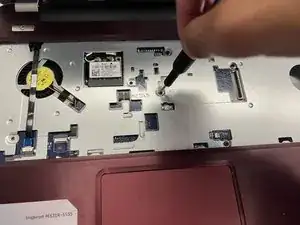

    • Unscrew the five 5.6mm Phillips #1 screws.

    • Unscrew the two 3.6mm Phillips #1 screws.

  8. xi6DQcFqRDN2C2VT
    xi6DQcFqRDN2C2VT
    ERcGShNsoMByGK5I

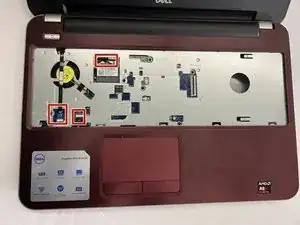

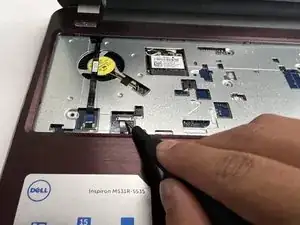

    • Disconnect all highlighted cables.

  9. 4ilUwMircfhQJXrG
    4ilUwMircfhQJXrG
    yIXlNSqtUXFfC6uV

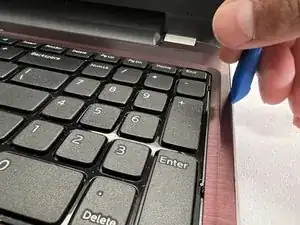

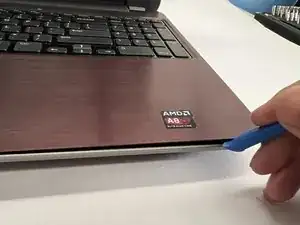

    • Using an opening tool, carefully pry open the case from the side.

  10. FjDhryXNAaWmku4M

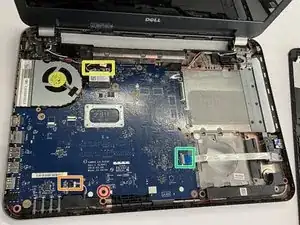

    • Unscrew the Phillips #1 screw.

    • Pull the white connector out to disconnect the cables from the motherboard.

    • Pull up on gold connectors (MHF4) to disconnect the cables connecting the WLAN card.

    • Pull up on the white flap and pull out the strip to disconnect the strip from the motherboard.

  11. mPJnxS2CYoBhumGk

    • Flip the motherboard over.

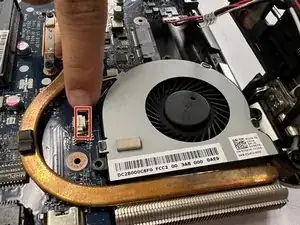

    • Pull the white connector out to disconnect the fan.

    • Lift the fan to remove it from the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
