Dell Inspiron M531R-5535 RAM Replacement

Geschrieben von: Tony Chen
  • Kommentare: 0
Dell Inspiron M531R-5535 RAM Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

10 Minuten

Einleitung

Use this guide to replace the RAM sticks in your Dell Inspiron M531R-5535 laptop.

RAM acts as a temporary memory bank in order to improve multitasking and overall device performance. Without RAM, your computer would be unable to run or process information, resulting in the computer not being able boot up.

Make sure to power off your laptop completely and disconnect from any external power source prior to beginning the process.

  1. eJ5hPRqnVEr45LA1
    eJ5hPRqnVEr45LA1
    RZJQPhe4DKcObtBs
    1mSOLHnIsIyWdI5u

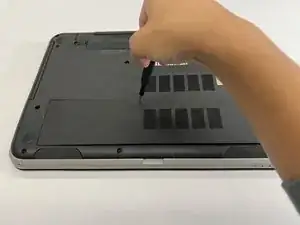

    • Flip the laptop over to its backside.

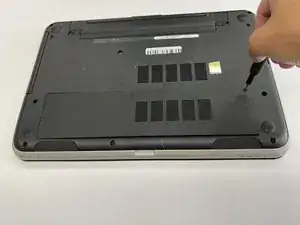

    • Loosen the two Phillips #1 screws to remove the tray.

    • The screws stay in the tray.

  2. KC3XRXSOicfIIvT5
    KC3XRXSOicfIIvT5
    RmB4Wob3GJsSdAqS

    • Lift up the tray from the right side.

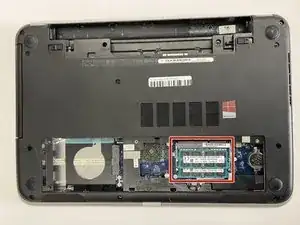

    • The RAM is located in the bottom right.

  3. ZS5cFujsg5yFTqSq

    • Push down the pins on either side of the RAM to unhook them.

  4. XeHuvKYac34Pj6qk

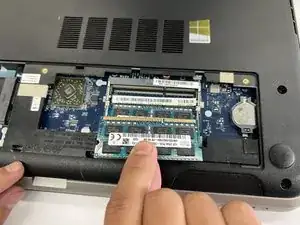

    • Carefully lift and pull the Ram out to remove it.

    • Repeat steps 3 and 4 to remove the second RAM.

Abschluss

To reassemble your device, follow these instructions in reverse order.
