Dell Inspiron N4010 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron N4010 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

4 - 15 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Display Assembly.

  1. ecsQCrl4CQeHCBHj

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Remove the two screws that secure the display assembly to the computer base.

  2. SNEh6Wo3JfRFp32s

    • Turn the computer over and open the display as far as possible.

  3. GUjLJFVvdDfPqYBP

    • Disconnect the display cable from the connector on the system board, and remove the display cable grounding screw.

  4. TsKoHWkOqwgwLmfP

    • Make a note of the Mini-Card antenna cables and display cable routing and remove the cables from the routing guides.

  5. bf1N1aAusQwVMPmT

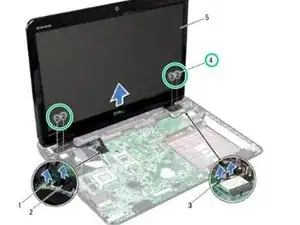

    • Hold the display assembly in place and remove the four screws that secure the display assembly to the computer base.

  6. 21EDUtdjqUQgN1wF

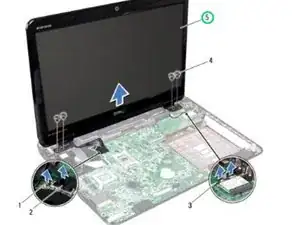

    • Lift and remove the display assembly out of the computer base.

  7. hUZV5XJXnWHq2oPb
    hUZV5XJXnWHq2oPb
    VZO5ouRGLqoEnDyH

    • Place the NEW display assembly in position and replace the four screws (two on each side) that secure the display assembly to the computer base.

  8. RTkXoRFBdwHYfeZc

    • Route the Mini-Card antenna cables and display cable through the routing guides.

  9. IKVPIOPPSIDlIKeX

    • Connect the display cable to the connector on the system board, and replace the display cable grounding screw.

  10. VPyauQCydTHkIE3y

    • Close the display and turn the computer over.

  11. 1BTrF2xZnuYw5dgR

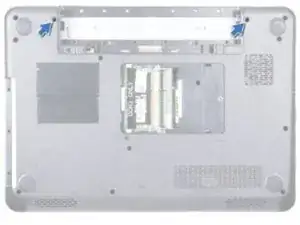

    • Replace the two screws that secure the display assembly to the computer base.
