Dell Inspiron N5010 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron N5010 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

6 - 15 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Display Assembly.

  1. MZXFS5gjUdZC5jsn

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Turn the computer over and remove the two screws.

  2. yOPmjFuQERstXJAd

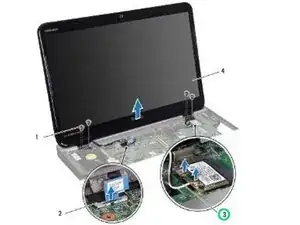

    • Disconnect the Mini-Card antenna cables from the Mini-Card.

  3. sGuHcmfrDI5eUiqs

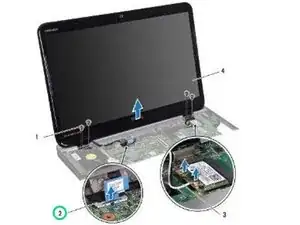

    • Disconnect the display cable from the connector on the system board and remove it from the routing guide.

  4. MXICMDISneLE1jOb

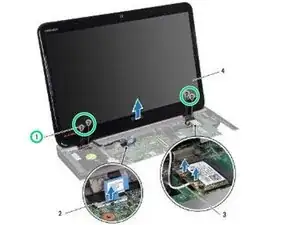

    • Remove the four screws (two on each side) that secure the display assembly to the computer base.

  5. ePdVBK3FQpVpcRVg

    • Lift and remove the display assembly out of the computer base.

  6. SiAKImGgDNvtmHXq

    • Place the NEW display assembly in position and replace the four screws (two on each side) that secure the display assembly to the computer base.

  7. FNSs4ehwjAkfKyS4

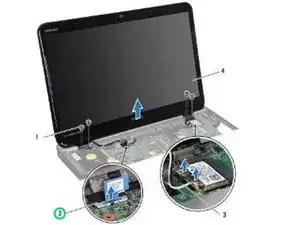

    • Route the display cable into the routing guide and connect the cable to the connector on the system board.

  8. 53dWCJkpFVb2ZJeX

    • Connect the Mini-Card antenna cables to the connectors on the Mini- Card.

  9. chqDIqWp1KPDdNEQ

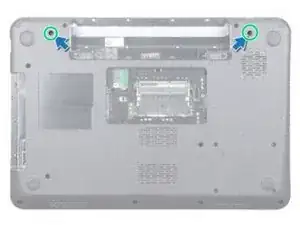

    • Turn the computer over and replace the two screws at the bottom of the computer.
