Dell Inspiron N5010 Hard Drive Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron N5010 Hard Drive Replacement

Schwierigkeitsgrad

Very easy

Schritte

7

Zeitaufwand

1 - 3 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Hard Drive.

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • CAUTION: Hard drives are extremely fragile. Exercise care when handling the hard drive.

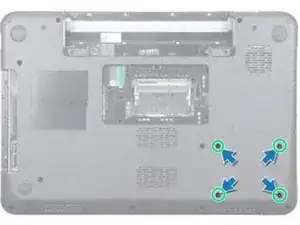

  2. AlvsPjLd1DJrTFbV

    • Remove the four screws that secure the hard-drive assembly.

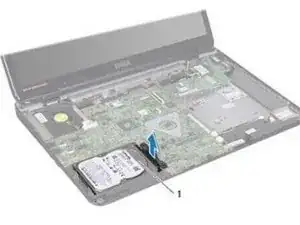

  3. KOuObUHuWnwaYOcZ

    • Turn the computer over and lift the hard-drive assembly out of the hard-drive bay to disconnect the hard-drive assembly from the connector on the system board.

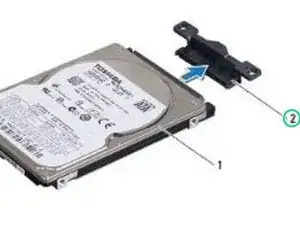

  4. qkTAxrDagYVXMcFh

    • Pull the interposer to disconnect it from the hard drive.

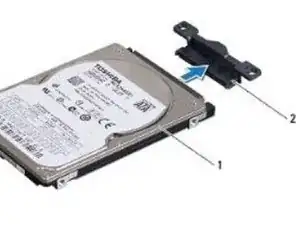

  5. 6XIxaaRHbfqGTDk4

    • Connect the interposer to the NEW hard drive.

  6. RZLXf44v5IX15cN5

    • Align the hard-drive assembly with the connector on the system board and press the hard-drive assembly into the hard-drive bay until it is fully seated.

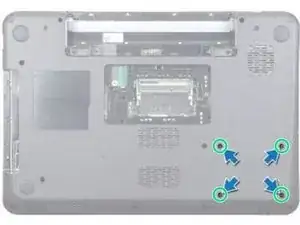

  7. BN4flco5RDKU36Nh

    • Turn the computer over and replace the four screws that secure the hard-drive assembly.
