Dell Inspiron N5030 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron N5030 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

4 - 8 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Display Assembly.

  1. U1wFFChEpLwXWmfj

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in Before You Begin.

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Remove the two screws that secure the display assembly to the base of the computer.

  2. rZ1BKNAYP3TfFbLv

    • Turn the computer over and open the display as far as possible.

  3. sfDYKpnyTFgYNGKd

    • Make a note of the Wireless Mini-Card antenna cable routing and disconnect the Wireless Mini-Card antenna cable from the Wireless Mini- Card.

  4. NQRhyuUXfYca4S6V

    • Disconnect the display cable from the connector on the system board and remove it from the routing guide.

  5. bdmSCqfSVL2DSvmJ

    • Remove the two screws (one on each side) that secure the display assembly to the computer base.

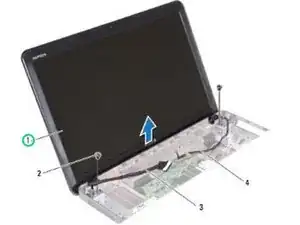

  6. Q2VPxYdijOqUfTlW

    • Lift and remove the display assembly out of the computer base.

  7. mxmBDvZEtmbeXlNo

    • Place the NEW display assembly in position and replace the two screws (one on each side) that secure the display assembly to the computer base.

  8. LhjwZPLAZR2j1Vdb

    • Route the display cable into the routing guide and connect the display cable to the connector on the system board.

  9. d3AYbqXMqLxD2Nio

    • Route the Mini-Card antenna cable into the routing guide and connect the Mini-Card antenna cable to the connector on the Mini-Card.

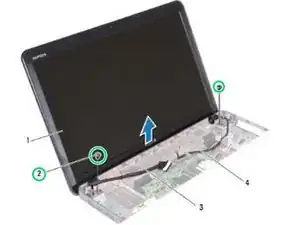

  10. bIUvVwtFJvQJFuh6

    • Turn the computer over and replace the two screws at the base of the computer.
