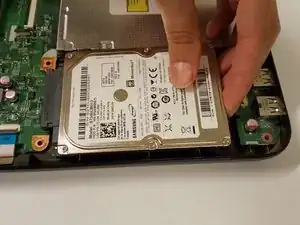

Dell Inspiron N5050 Hard Drive Replacement

Geschrieben von: Kristy Mayo

Kommentare: 11

Dell Inspiron N5050 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

10 - 15 Minuten

Einleitung

Before disassembling this device further, have a screwdriver and a plastic opening tool nearby. This section of the guide involves removing the keyboard, so make sure you carefully pull the keyboard cable to prevent damaging it.

Werkzeuge

Ersatzteile

Schritt 1

Flip your laptop over to view the bottom and the two locks.

How many gb hard drive can I install on Inspiron n5050

Anguiano pro -

Schritt 2

Slide the two locks away from each other.
Sliding these locks will loosen the battery to allow removal.

Schritt 3

Pull the battery out of the laptop.
Your laptop's battery should be completely removed.

Schritt 4

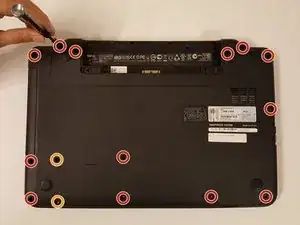

Remove the eleven 5mm palmrest screws from the bottom of the laptop with a Phillips #PH00 screw.
Remove the two 3mm hard drive screws from the bottom of the laptop with a Phillips #PH00 screw.

You may also remove the 2 indicated hard drive screws during the last step.

They are of different length than the other screws in this step, and it will provide better stability for the drive as you flip the computer over multiple times.

Brian Y - 21/03/17

Aren't there 13 screws in that picture, aside from the two hard drive screws, bringing the total to 15?

D Smartvlasak - 30/06/17

Just to be clear, the case screws are 2.5mm(diameter) x 5mm(length). The two hard drive screws are 3mm x 5mm.

gworrel -

Schritt 5

Flip over and open the laptop to view the keyboard.

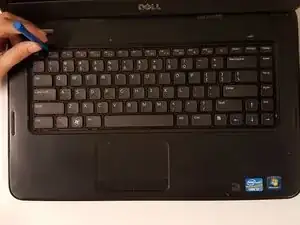

Use a plastic opening tool to press down on four clips, one by one.
Press down on the clips and pull the tool towards you to pry the keyboard loose.

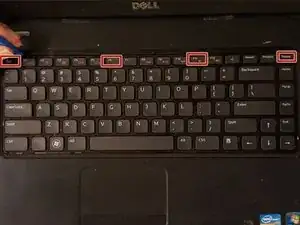

The four clips are above the Esc, F6, F11, and Delete keys.

The plastic opening tool is really ideal for this step. Especially use of one with a bit of a hook to it, so you may lift up the keyboard without pulling upon the individual keys. The keys can pop off, which is undesirable.

Without the pry tool, I ended up using the edge of a clean plastic take-out container to both press down the tab while the lip provided the hook action needed to lift up the keyboard itself. Used a popsicle stick temporarily to brace it as the remaining clips were undone.

Brian Y - 21/03/17

Schritt 6

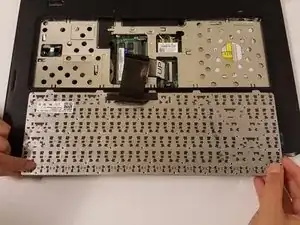

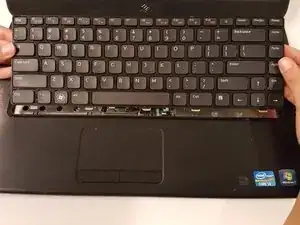

Remove the keyboard carefully.
Make sure to lift the keyboard gently, because a cable is connected to the back.
Flip the keyboard over to find the keyboard cable.

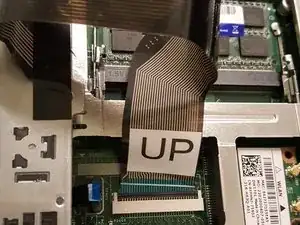

Pull the cable labeled "UP" out to disconnect it from the laptop.

To remove the keyboard flexible flat cable, there is a dark grey strip securing the cable, (visible in the detailed photo). This grey plastic strip secures the cable, and is undone by lifting gently from the long edge adjacent to the UP label. It has 2 delicate pivot points left and right of the visible conductors in the white plastic connector.

If you just grab and yank the flexible flat cable, this piece will likely just pop off, but can be re-seated provided it did not break.

Brian Y - 21/03/17

Schritt 7

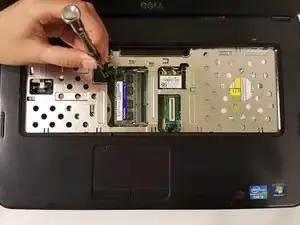

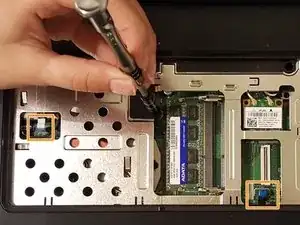

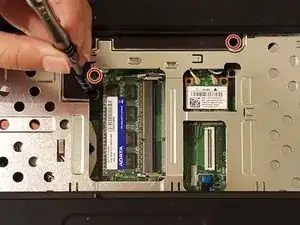

Unscrew the two palmrest screws.

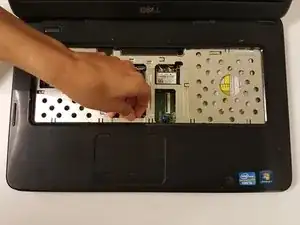

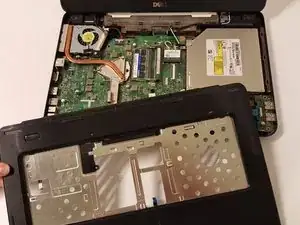

Lift the two, blue palmrest cables up and out of their sockets.

The two blue palmrest cables can be removed much easier if you lift the securing plastic gently. Found within the orange rectangles, each one can be lifted a millimeter or so, freeing the flexible flat cable.

Brian Y - 21/03/17
