Dell Inspiron N5110 - WiFi Half Mini PCI card Replacement

Geschrieben von: ZFix
  • Kommentare: 3
Dell Inspiron N5110 - WiFi Half Mini PCI card Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

15 Minuten

Einleitung

WiFi & Blue-tooth mini PCI card replacement. To change the Wifi card on this model you must to remove the upper case of the laptop. This is not a good engineering designee. We will show you how to do this.


Please SUBSCRIBE to my channel ツ

  1. NUwgrn1JYScETTXf
    NUwgrn1JYScETTXf
    eegfJyROioqUYEEY
    OTG6gle1Zfqtmn2D

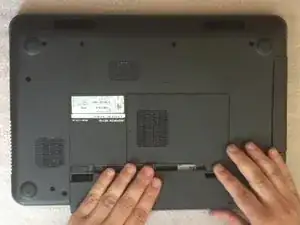

    • Switch off the laptop and remove the battery.

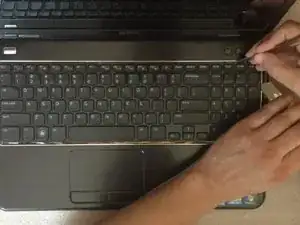

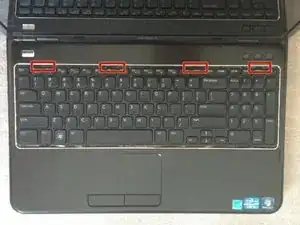

    • The keyboard is held by 4x locking clips.

    • By using cutter, carefully lift up the one side of the keyboard and start opening the locking clips.

  2. tODrMEmfwUArBsQu
    tODrMEmfwUArBsQu
    RlPCCRTHcJq2RIBH
    aBTEaNJ3HNLCUuBV

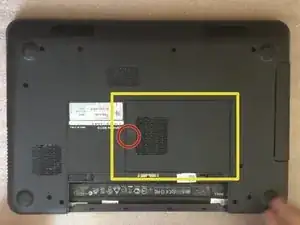

    • Disconnect the keyboard cable and remove the keyboard.

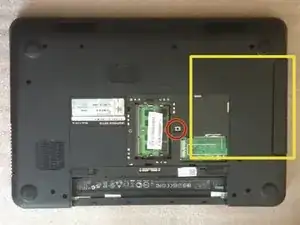

    • Remove the access door screw and the access door

    • Remove the screw securing the optical drive, and remove the optical drive

  3. E5wZkJt2HZvMdPxf
    E5wZkJt2HZvMdPxf
    wstgsHPpkSq3pmnc
    FEcmbNIPQZJ4DjdL

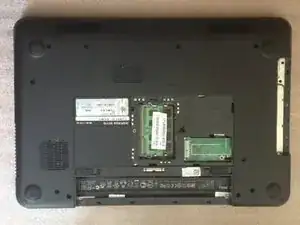

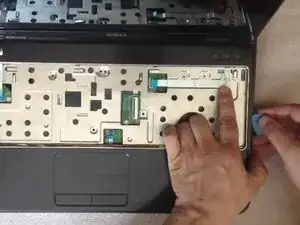

    • Remove all the screws

    • Pry the upper plastic casing off of the laptop

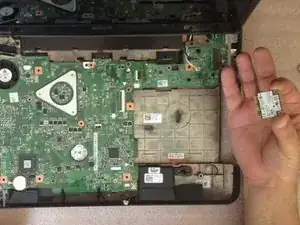

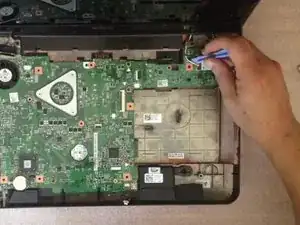

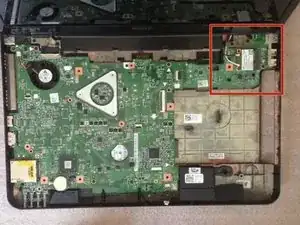

  4. 2npmWK1AAuGTgQX1
    2npmWK1AAuGTgQX1
    XIv1tsLdCeZjJgWU
    WUT4NGFsch4LC6fZ

    Is the bios whitelist free?, I want to put an intel AC wifi card

    Eduardo Arteaga -

Abschluss

To reassemble your device, follow these instructions in reverse order.
