Dell Inspiron One 2020 Hard Drive Replacement

Geschrieben von: Tyler
  • Kommentare: 5
Dell Inspiron One 2020 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

5 - 30 Minuten

Einleitung

  1. ga1g5gxVjCDeqdrA
    ga1g5gxVjCDeqdrA
    dKJ3K4JdOMqiwi6D
    615hDwWLs6fWUUaj

    • Place the all in one computer face down on a soft, clean surface to avoid scratching the front.

    • Press the tab on the stand cover and lift up.

  2. bGHifCJCEUmgjV4g
    bGHifCJCEUmgjV4g
    NDetKhAjPLyIMsB4
    WTNsUqYLHQwQA15k

    • Remove the four phillips screws that attach the stand to the computer.

    • Tilt the stand up and out.

  3. yRLtQMFyxK2rDIwt
    yRLtQMFyxK2rDIwt
    tBQwInOZbvoNSpaA
    rjhZ4T2EmJPG4oID

    • Starting from the optical drive, pry the back cover up with a plastic spudger.

    • The cover is held in place by fragile plastic clips. Careful to not break them.

  4. YP62uBkETlRqGvgj
    YP62uBkETlRqGvgj
    qi11Ohk6vhFNGGsB

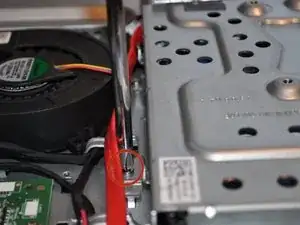

    • Remove the three screws that hold the hard drive cage to the chassis.

  5. 4IKYLuBwTqivEXhp
    4IKYLuBwTqivEXhp
    GT3tVEbVXy3URaCJ

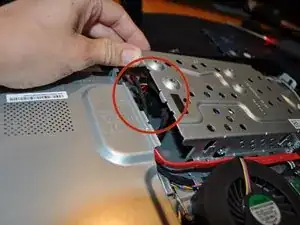

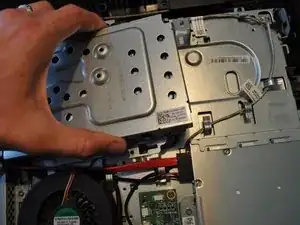

    • Slide the hard drive cage out slightly to access and remove the power and SATA cable.

    • There isn't much slack in these cables, so don't slide the hard drive cage to far.

    • The power and SATA cables are connected together. On most other computers, these connectors are separate.

    • Lift the hard drive cage out.

  6. QDDEAMRHKTSEYeYX
    QDDEAMRHKTSEYeYX
    HdYAvcHeUCWxuJFB
    ZOXNIhBSk4HWXfOd

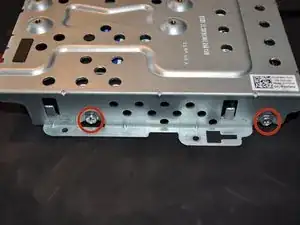

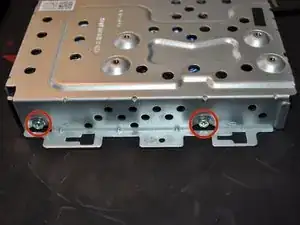

    • Remove the four screws (two on each side) that attach the hard drive cage to the hard drive.

    • Lift the hard drive cage off the hard drive.

    Excellent guide, was a super easy swap. I put an SSD in it!!

    Matt Yakel -

    Hey Just one question, is the HDD SATA 2 or SATA 3? Just wanted to know so I can purchase an SDD with the correct specification.

    Jeffery Epstein -

Abschluss

To reassemble your device, follow these instructions in reverse order.
