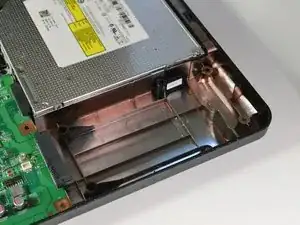

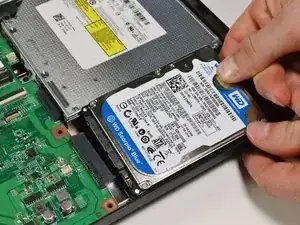

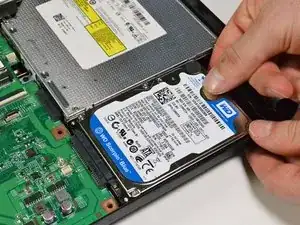

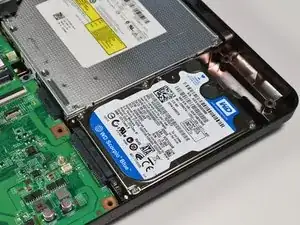

Dell Inspiron m5030 Hard Drive Replacement

Geschrieben von: Michael McNutt

Kommentare: 4

Dell Inspiron m5030 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

5 Minuten

Einleitung

This guide will inform you how to remove and replace the hard drive in your Dell Inspiron m5030.

Werkzeuge

Schritt 1

Remove all fourteen Phillips #0 7/16" screws from the bottom of the laptop.
Remove the two Phillips #0 5/16" screws from the bottom of the laptop.

If you are removing only the keyboard, you only need to remove two screws.

1 - Remove the screw to the immediate right of the INSPIRON M5030 label.

2 - To the top left of the INSPIRON M5030 label, there are two screws. Remove the left one.

===

I marked the two screw locations with green, for clarification.

- https://ibb.co/nz4rNG

- https://postimg.org/image/67kinagal/

Robert Johnson - 01/01/18

Schritt 2

Turn the laptop over and open the lid.
Locate the three tabs above the first row of keys on the top of the keyboard, found above the F1, F6, and PrntScr keys.
With one of your hands, push the leftmost tab down with the plastic opening tool (above the F1 key). With your other hand, lift the left side of the keyboard.
Push the middle tab down with the plastic opening tool and continue lifting from the left side of the keyboard to the right side (above the F6 key).
Push the rightmost tab down with the plastic opening tool and continue lifting from the left side of the keyboard to the right side (above the PrntScr key). The keyboard should be loosened from the laptop after these steps.

for your last bullet, maybe clarify saying "push the next to tabs with the plastic opening tool…"

Katie Pepi - 27/05/14

Schritt 3

After the top edge of the keyboard is loose, pull up on the keyboard gently.
Do not pull the keyboard up forcefully as the keyboard is still attached to the laptop by a ribbon.

Schritt 4

Pull up the bottom side of the keyboard and locate the ribbon connecting the keyboard to the motherboard.
Locate the blue end of the ribbon which is connected to the motherboard.
Lift up the black flap on the connector and gently pull the ribbon away from the connector which is parallel to the motherboard.
Lift the keyboard up and off of the motherboard. Detach the blue end of the ribbon from the connector.

Schritt 5

Disconnect the blue tab located just above the touch pad of the laptop.

how do you disconnect speaker cable from it’s connector do those tabs lift up push down or do you just pull them out never seen connectors like them before and i am a bit concerned i might break connector.

Garry

garry gibbons - 23/11/20

Schritt 6

Use a plastic opening tool to pry up the plastic covering of the laptop by wedging it underneath one side of the covering and lift up.
Do not lift off the cover all the way as it is still connected by two wires on the side nearest to the screen.
