Dell Inspiron n5050 Upper Case Replacement

Geschrieben von: Tyler
  • Kommentare: 4
Dell Inspiron n5050 Upper Case Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

Keine Schätzung

Einleitung

  1. uQbpZsCfux2ORquJ

    • Flip your laptop over to view the bottom and locate the two locks.

  2. XbdU6yDTi2uQDWvF

    • Slide the two locks away from each other.

    • Sliding these locks will loosen the battery to allow removal.

  3. cSX5c1IPS2O1WZqB
    cSX5c1IPS2O1WZqB
    hubMXhZEUipkL1qi

    • Pull battery out of the laptop.

    • Your laptop's battery should be completely removed.

  4. H3LMDXl4IJnHRgdO
    H3LMDXl4IJnHRgdO
    IHoQsRllmltiHLOy

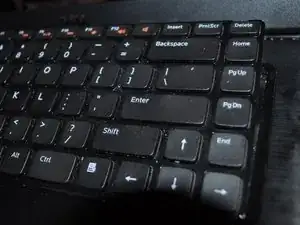

    • Flip the laptop right side up. Open the laptop.

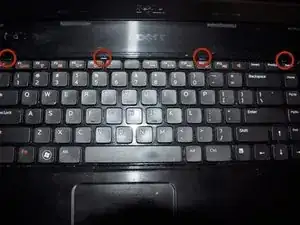

    • Gently press in the four retaining tabs along the top of the keyboard with a spudger, one at a time.

    • After the first tab is released, gently lift up on the keyboard so it doesn't lock again. Finish the other three tabs while gently lifting up on the keyboard. The keyboard will hinge up along the bottom.

  5. Vqv4MgXDdK4jtKCx
    Vqv4MgXDdK4jtKCx
    JZutJhjEdX5fvYCG
    IJRwQJSdgPsJMPWe

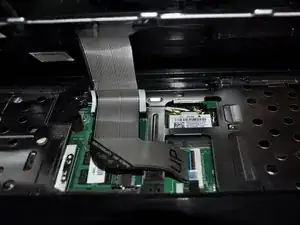

    • Gently flip the data cable latch away from the data cable with flat side of spudger.

    • Lift the cable up and out.

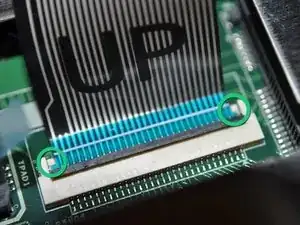

    • When reinstalling cable, there are two retainer wings on the sides of the cable that the cable that lock onto the bottom of the cable latch area. When these are in place the cable is properly inserted.

    • For removing the optical drive you don't need to disconnect the keyboard ribbon cable.

    What do I do is i broke the cable retainer wings and the black thing?

    Wezley Joao Ferreira -

    If the connector on the motherboard is still attached and only the clip is broken you can try and find a new clip, or perhaps tape the keyboard in place with electrical tape.

    Tyler -

    I didn’t need to disconnect and remove the cable. I simply set the keyboard gently to the side. This gave me full access to the two RAM module slots for replacement. Hopefully this will make the procedure easier.

    Clemmitt Sigler -

  6. mNyfIM3BUU6PEoAy

    • Close the lid, flip the laptop bottom side up with the battery at the top.

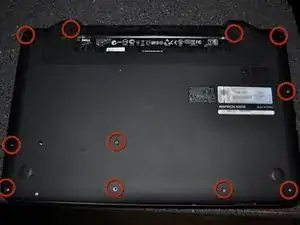

    • Remove the 11 screws holding the upper case to the lower case.

  7. RbJJbKkuBvKg6iCj

    • Flip the laptop over and open the lid.

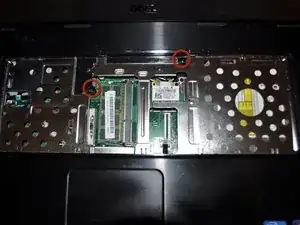

    • Remove the two screws from the upper case.

  8. cVqujalYBNEiYlfk
    cVqujalYBNEiYlfk
    H6k3RphyjoGr5PjF
    COGaVZwIb4dgIF5n

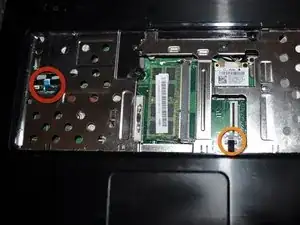

    • Gently unplug the power cable.

    • You lift up on the dark gray latch.

    • Pull the blue ribbon up.

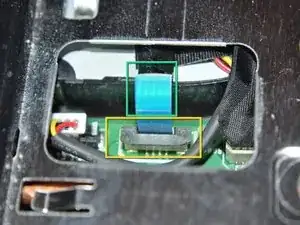

    • Gently unplug the touchpad cable.

    • Lift up on the dark gray latch.

    • Pull the blue ribbon up

  9. 4qFmJ3AFCQLAaKNu

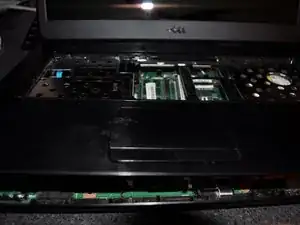

    • Grab the metal frame of the upper case and gently pull it away from the lower case. Disconnect the cable that says MB before removing the palmrest.

    • Work your way around the perimeter of the upper case.

    Thanks publishing this repair guide.

    Jay -

Abschluss

To reassemble your device, follow these instructions in reverse order.
