Dell Inspiron n5110 - Keyboard Replacement

Geschrieben von: ZFix
  • Kommentare: 3
Dell Inspiron n5110 - Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

How to remove not working keyboard and install a new one.


Please SUBSCRIBE to my channel ツ

  1. EgxDnof1mbrxoxxt
    EgxDnof1mbrxoxxt
    k5YdGEOsWXMJuVtW

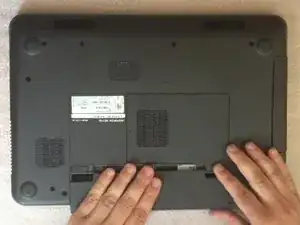

    • Switch off the laptop and remove the battery.

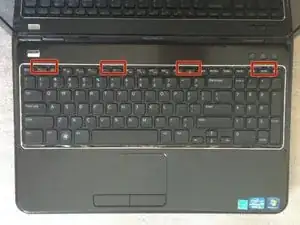

    • The Keyboard is held by 4x locking clips.

  2. vsPQOXWqN4jDHurl
    vsPQOXWqN4jDHurl
    sBwsswI4BUGPEEOo
    bplLcGGBZRPpEpqv

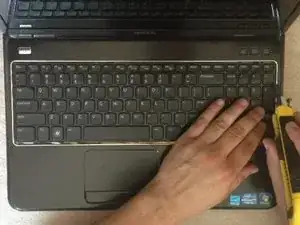

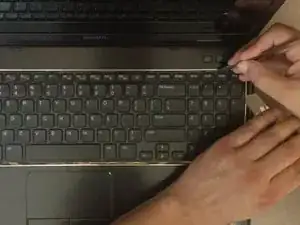

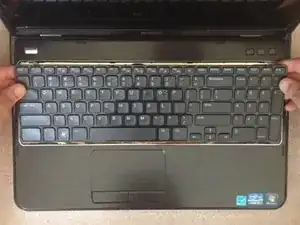

    • By using cutter, carefully lift up the one side of the keyboard and start opening the locking clips.

  3. WoVPpYORHlPJq5Db
    WoVPpYORHlPJq5Db
    QPB1qmPHSO2QEJ1h
    lws4vdtCOfp3hgwt

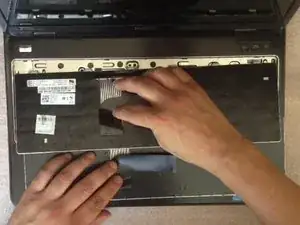

    unlock the keyboard pair, the black one, by lift it up.

    Suradet Chaimongkol -

Abschluss

To reassemble your device, follow these instructions in reverse order.
