Dell Inspiron n5110 Battery Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron n5110 Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

15 - 45 Sekunden

Einleitung

In this guide, we will be showing you how to remove and replace the Battery.

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in "Before You Begin".

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Shut down the computer and turn it over.

  2. oWFbUZaQBjUngNfy

    • Slide the battery release latch and the battery lock latch to the unlock positions.

  3. LflVGEpuOrw26mQq

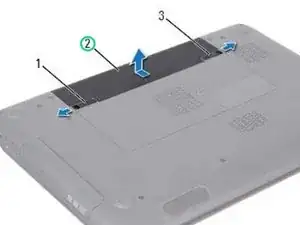

    • Slide and lift the battery out of the battery bay.

  4. f2thEwO5bDZAyEPe

    • Slide the NEW battery into the battery bay until it clicks into place.

  5. WFWJHmv1xtBcuGTp

    • Slide the battery lock latch to the lock position.
