Dell Inspiron n5110 Display Assembly Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron n5110 Display Assembly Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

4 - 7 Minuten

Einleitung

In this guide, we will be showing you how to remove and replace the Display Assembly.

  1. 6DjbsTEgfaoYbLWf

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in "Before You Begin".

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • Remove the two screws that secure the display assembly to the computer base.

  2. EZ2GveBDkrHMtYXQ

    • Disconnect the display cable and touch-screen cable from the system-board connectors.

    • NOTE: The touch-screen board is optional and may not be present in your computer.

  3. HKeAPMBQAHggl4oQ

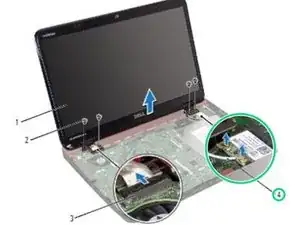

    • Note the routing of the Mini-Card antenna cables and remove the cables from the routing guides.

  4. uixuyavTPbGIpDA5

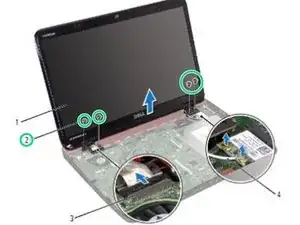

    • Remove the four screws that secure the display assembly to the computer base.

  5. ygtGZIAwII61H3Fp

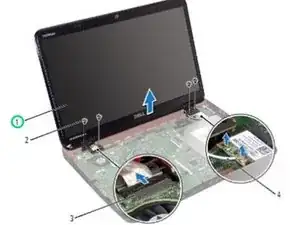

    • Lift the display assembly off the computer base.

  6. xcBQ2OV6ynFtpGXm

    • Place the NEW display assembly in position and replace the four screws that secure the display assembly to the computer base.

  7. USugtNULZKBWASpU

    • Route the Mini-Card antenna cables through the routing guides.

  8. oHG1sLXepyeDPLuh

    • Connect the display cable and touch-screen cable to the connectors on the system board.

  9. YmL5c6QIGfc6nMsr

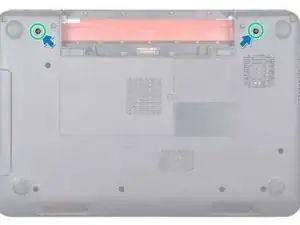

    • Replace the two screws that secure the display assembly to the computer base.
