Dell Inspiron n5110 Memory Module Replacement

Geschrieben von: Terrence15
  • Kommentare: 0
Dell Inspiron n5110 Memory Module Replacement

Schwierigkeitsgrad

Very easy

Schritte

5

Zeitaufwand

10 - 45 Sekunden

Einleitung

In this guide, we will be showing you how to remove and replace the Memory Modules.

    • WARNING: Before working inside your computer, read the safety information that shipped with your computer. Follow the instructions in "Before You Begin".

    • CAUTION: To avoid electrostatic discharge, ground yourself by using a wrist grounding strap or by periodically touching an unpainted metal surface (such as a connector on your computer).

    • CAUTION: To prevent damage to the memory module connector, do not use tools to spread the memory module securing clips.

  2. ZDT2ZNAnqWtsFTAf
    ZDT2ZNAnqWtsFTAf
    DQVSc4CSfTQREWGi

    • Use your fingertips to carefully spread apart the securing clips on each end of the memory-module connector until the memory module pops up.

  3. mnJMNUmVMlm3n3di

    • Remove the memory module from the memory-module connector.

  4. cipYsdfL66VduVJh
    cipYsdfL66VduVJh
    VeFOMD2JDBmwkhhE

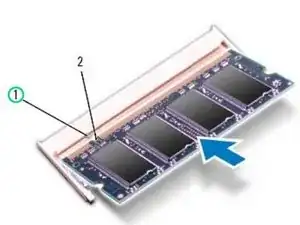

    • Align the notch in the NEW memory module with the tab in the memory-module connector.

  5. 46APh4pQPoCUvXO1

    • Slide the memory module firmly into the slot at a 45-degree angle, and press the memory module down until it clicks into place. If you do not hear the click, remove the memory module and reinstall it.

    • NOTE: If the memory module is not installed properly, the computer may not boot.
