Dell Latitude 10-ST2e Battery Replacement

Geschrieben von: Vincent Hoffman
  • Kommentare: 1
Dell Latitude 10-ST2e Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

5 Minuten

Einleitung

This guide will provide a step by step guide to remove the battery from the tablet. This is necessary for a device which has a faulty, broken, or a worn out battery.

  1. EIarHYMF3xQOoevX
    EIarHYMF3xQOoevX
    GYsbBMsyLUfsw6qC
    HuHdsPUvQnmEaIfp

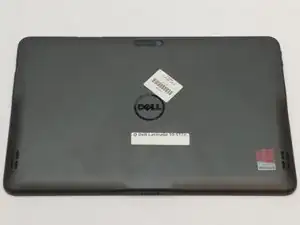

    • Place tablet face-down on flat surface.

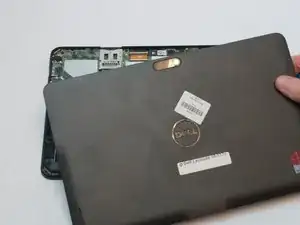

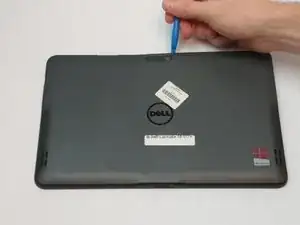

    • Using the blue opening tool, separate the back plastic cover from the device. Start in a corner, and work your way around the tablet.

  2. CmFuXG6No5ECDUv5
    CmFuXG6No5ECDUv5
    ZTfi5X5FwZVMIWUR

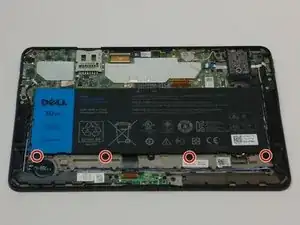

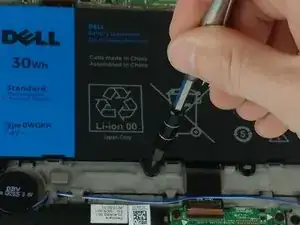

    • Remove the four 7.0mm screws securing the battery with a JIS #00 screwdriver.

  3. uAXFnykBTBNG2hgD
    uAXFnykBTBNG2hgD
    NYEmb3NbATJJmeEI

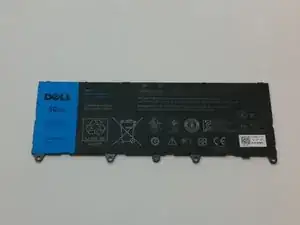

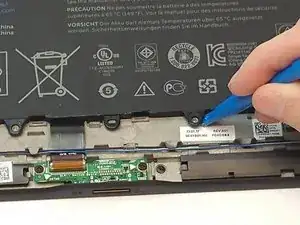

    • With the blue opening tool, gently lift up and remove the battery from the tablet.

    • Do not damage, puncture, cut, or bend the battery, as this may cause bodily harm.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Vincent Hoffman

Mitglied seit: 25/09/17

261 Reputation

Ein Kommentar

I found that the down volume control was jammed by the case. So be careful with the reassembly around the volume control.
