Dell Latitude 3190 Keyboard Replacement

Geschrieben von: Haley Smith
  • Kommentare: 0
Dell Latitude 3190 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

30 - 45 Minuten

Einleitung

Follow this guide if the keyboard in your Dell Latitude 3190 has stopped functioning.

Make sure your device is powered off and unplugged from external power before beginning the repair.

  1. IHA2bqnn2XDTCDHJ
    IHA2bqnn2XDTCDHJ
    wXdTlxOVhPU3iGLE

    • Use a Phillips #0 screwdriver to remove the seven 7 mm screws securing the back case.

  2. PSJ4gRd3BF6UE5fh
    PSJ4gRd3BF6UE5fh
    MqIsbwCRQdYRQWI4
    vjvWxp11JXkr4OAp

    • Using a plastic opening tool carefully separate the plastic base cover from the rest of the laptop.

    • Lift the bottom cover from the laptop.

  3. Z5FktUTlr4dSrKdT

    • Locate the battery.

  4. GOXnvpaPl4sDcjQL
    GOXnvpaPl4sDcjQL
    KpjmtdOd2LNApUNP
    WNjRNryrYG2Za5DS

    • Disconnect the battery cable located on the top of the battery.

    • Use the spudger and disconnect the battery cable.

    • Pull the cable out of the way.

  5. L4OEXgI2OSULvYpk
    L4OEXgI2OSULvYpk
    hnVPImawMYErHDSC
    JEKhrq4KjnMWwFvp

    • Use a Phillips #0 screwdriver to remove the three 3 mm screws from the battery.

  6. QN4GMQJ6vMBAafLR
    QN4GMQJ6vMBAafLR
    NcFXfPeJNmXoLtXw
    Is64wCNRgAFT2AXQ

    • Pull the black battery tap upwards to remove the battery.

    • The battery adhesive is strong, do not be afraid to use force. You may need to use the spudger or opening tool as a wedge.

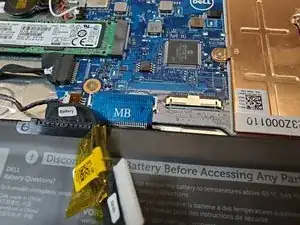

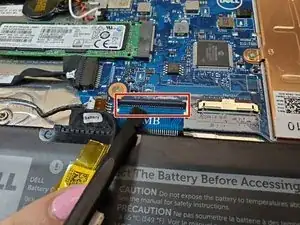

  7. UyWciQCLCTVhpmvT
    UyWciQCLCTVhpmvT
    sBmGrLS3h2iDElTh

    • Use the spudger to release the small black tab locking down the connector by lightly pushing up on it.

    • Disconnect the keyboard cable from the connector on the system board.

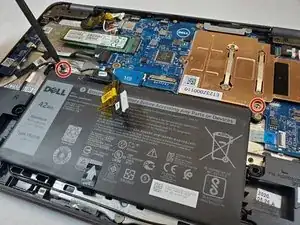

  8. FY2qXrqYn5DJyTqi
    FY2qXrqYn5DJyTqi
    G4fGXIlVwuc35caZ

    • Hold down the laptop securely while pushing into the two release holes using a spudger.

    • You may need to push harder than you think, you will feel it release.

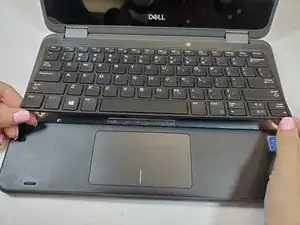

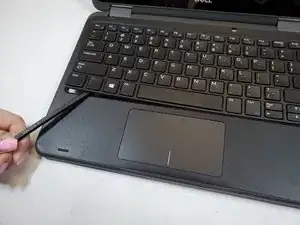

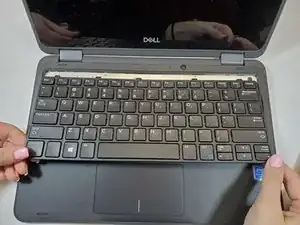

  9. dJXdfbAQfedQSQoO
    dJXdfbAQfedQSQoO
    tEcXTx32PPOwHn1C
    RcuwGvdTyQY6ZVgN

    • Turn the laptop over, so the keyboard is facing up

    • Pry the bottom of the keyboard using a spudger to the release the keyboard.

    • Slide the keyboard outwards, away from the computer, and lift the keyboard away from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
