Einleitung

  1. TTEE2NSohwsAmGIE
    TTEE2NSohwsAmGIE
    XyavMUZUCQeZUnBX
    gLgLW2yLsyNRel42
    • Remove the 9 phillips #0 screws from the bottom of the case.

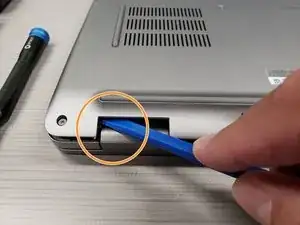

    • Carefully pry open the base cover with your spudger. Work your way around the case slowly, being careful not to damage any of the components inside.

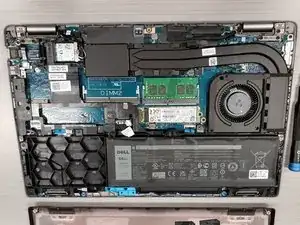

    • Once removed you will have access to the contents of your case.

  2. KnMDFLPcCOIBOsHv
    KnMDFLPcCOIBOsHv
    1flFElAIrcjBeGme

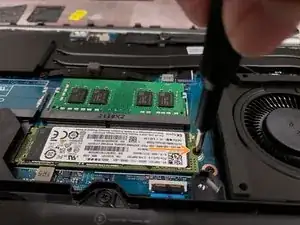

    • Locate the solid-state drive.

    • Remove the screw on the right side of the drive.

    • After remove the screw, the drive will "pop-up" to approximately a 45% angle. Pull the drive straight out in accordance with the angle.

    • Static electricity is always a danger. Take precautions to protect the drive while, and once, it is removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
