Dell Latitude 7390 Wi-Fi Card Replacement

Geschrieben von: Glennjay Elayda
  • Kommentare: 0
Dell Latitude 7390 Wi-Fi Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

15 - 30 Minuten

Einleitung

If you need to replace the Wi-Fi chip within your Dell latitude 7390, follow this guide.

Before beginning this repair, be sure to power off your laptop and disconnect from the power adapter.

  1. MNJRPveVJcxU4o4D

    • Orient your Dell Latitude 7390 laptop so that it is facing towards you as if you're going to open it.

  2. 5XOr6koDhdZAfxFC
    5XOr6koDhdZAfxFC
    MIFBgsFrUgWi5CZB
    xSISom2KWQmZWR5A

    • Flip your laptop over so that the bottom is facing up.

  3. gX6nIKSTIuKJmMSU

    • Using your Phillips #1 screwdriver, remove the eight 6 mm screws around the border of the bottom panel.

  4. sIw23aRdgp2nMEWn
    sIw23aRdgp2nMEWn
    VYWQIlR6ZTXYJeQJ

    • Using an opening tool or picks, work your way around the periphery and pry the back case off.

  5. JwNbGZTfYawZSxPu

    • Finally, lift the back panel off to uncover the inside of your Dell Latitude 7390.

  6. Npuv32KeySCUIchS

    • Make sure the laptop is turned OFF and unplugged from the power adapter before taking the battery out.

    • Use the Phillips #1 screwdriver to remove the five 6 mm screws holding the battery in place along the edges of the battery.

  7. TGlZr5dwYkhJmNpC
    TGlZr5dwYkhJmNpC
    MhKIyQHHr1kRggpk
    okgMRSfyYMn5Goxd

    • Be careful not to break the connector by pulling too hard on the black tab.

    • Pull the black tab on the top of the connector to unplug the battery from the motherboard.

  8. SwQLtBHJoONUXkYr

    • Carefully lift the battery out of the laptop.

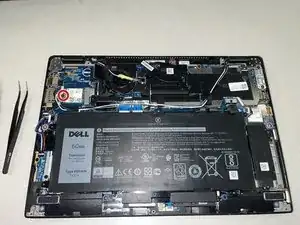

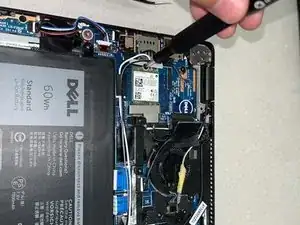

  9. y1yqZVTEW2EoLhmH
    y1yqZVTEW2EoLhmH
    ILHoIyiFCf5yKLkp

    • Using a Phillips #1 screwdriver, remove the 3 mm screw securing the Wi-Fi card.

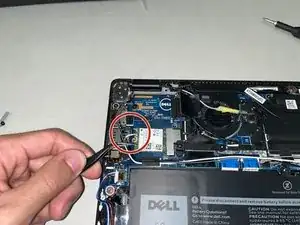

  10. sXG5Q4qlCAUQxXJh

    • Detach the coaxial connectors from the Wi-Fi card with tweezers.

    • Before removing the wires, it is important to note the location of the corresponding connectors. When it comes to reconnecting the wires they will need to be placed in the correct port in order to function correctly.

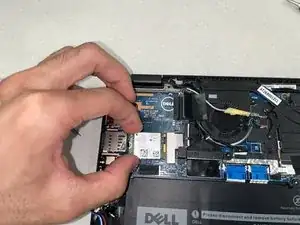

  11. UBmFWfFh4FHJ6Ora

    • After the wires have been disconnected, pull the chip out of the connector and place the part aside.

Abschluss

To reassemble your device, follow these instructions in reverse order.
