Dell Latitude 9410 2-in-1 Battery Replacement

Geschrieben von: Jessica Stephens
  • Kommentare: 2
Dell Latitude 9410 2-in-1 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

10 - 20 Minuten

Einleitung

Use this guide to replace the battery of the Dell Latitude 9410 2-in-1.

Failure to charge or inability to hold a charge may indicate a faulty battery. Check the troubleshooting page before moving forward with the battery replacement as there are other potential causes that are easier to address, such as a faulty charging port.

  1. AYC1YKfmwof4Jwty

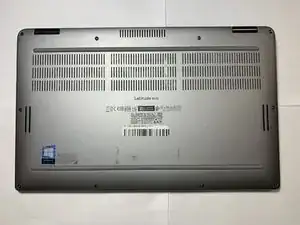

    • Ensure that the laptop is unplugged and powered off before beginning.

    • Place the laptop upside down on a flat surface.

  2. ynIr1NqMFFiOjWND
    ynIr1NqMFFiOjWND
    rhBiBAx1FTwh5ODf

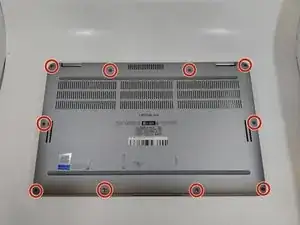

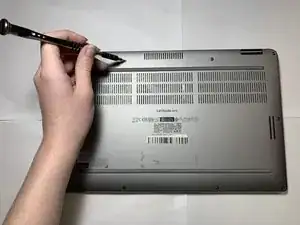

    • Use a Phillips #00 screwdriver to loosen the ten captive screws.

    • The screws are permanently fastened to the base panel; do not attempt to remove them.

  3. GuHQBTHYlavdulJP
    GuHQBTHYlavdulJP
    asAXStlTtcyfvROb
    Z1xLSZYcQe3KdRaA

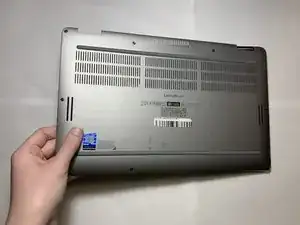

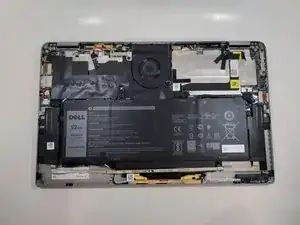

    • Carefully lift off the back panel.

  4. tdCGJGis21ZAIh4x
    tdCGJGis21ZAIh4x
    SighihMxuOlQkVmR

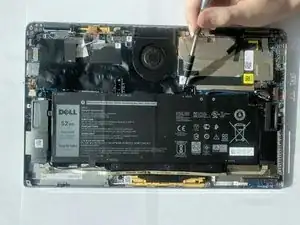

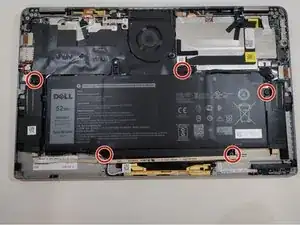

    • Use a Philips #00 screwdriver to remove the five 3mm screws that secure the battery.

  5. NKKuyvDkLMUaJYxT
    NKKuyvDkLMUaJYxT
    AOm2ilXY2eHkeOrh
    TmB1rvu5cICwfMfa

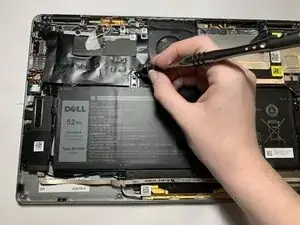

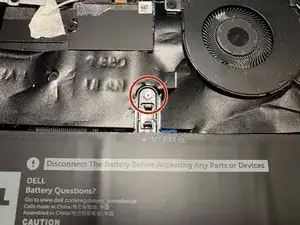

    • Use a Philips #00 screwdriver to remove one 4.5 mm screw.

  6. nZZGDTp6BRhgaKc1
    nZZGDTp6BRhgaKc1
    LoaBttBsYRXHbkIu

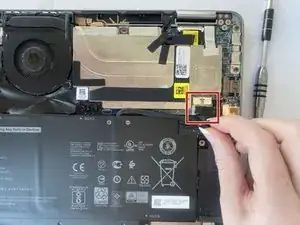

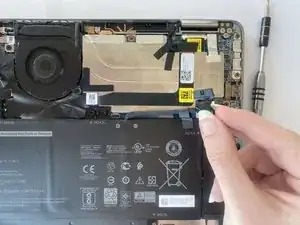

    • Grip the battery cable near the plug and pull it straight out, in the direction of the cable.

  7. JwppH1sM6jfHH6hD
    JwppH1sM6jfHH6hD
    i3NFtbgbAHSVjBbg

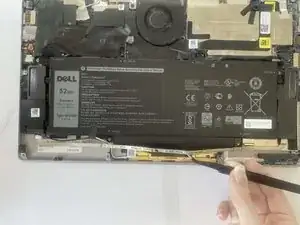

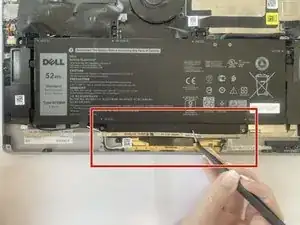

    • Use tweezers to gently move the speaker ribbon cable away from the bottom of the battery.

    • The ribbon cable is thin and fragile; handle it carefully.

    • The ribbon cable only needs to be moved so that the battery can be removed; do not completely remove the ribbon cable.

  8. bLPCxmfiNjrdxrfP
    bLPCxmfiNjrdxrfP
    AjFYiw3d2hjswMpY

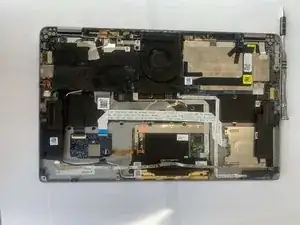

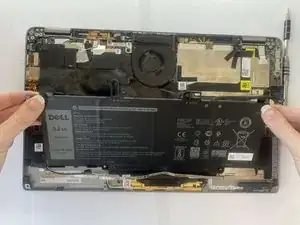

    • Lift the battery out with two hands.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Jessica Stephens

Mitglied seit: 08/02/22

558 Reputation

2 Kommentare

This is a fantastic guide. Thanks for posting it.

EAR -

Just one question about the speaker ribbon glued to the battery (Step 7). I can't remove the ribbon from my battery. The glue is very strong. I've pulled firmly, and I'm worried about breaking the cable. Any ideas about how to loosen the glue without damaging the computer, perhaps by applying heat or some sort of solvent?

EAR -
