Einleitung

Use this guide to replace the Wifi card of the Dell Latitude 9410 2-in-1. Dropped connections, slow internet speeds or inability to connect to the internet may indicate a faulty Wifi Card.

  1. AYC1YKfmwof4Jwty
    • Ensure that the laptop is unplugged and powered off before beginning.

    • Place the laptop upside down on a flat surface.

  2. ynIr1NqMFFiOjWND
    ynIr1NqMFFiOjWND
    rhBiBAx1FTwh5ODf
    • Use a Phillips #00 screwdriver to loosen the ten captive screws.

    • The screws are permanently fastened to the base panel; do not attempt to remove them.

  3. GuHQBTHYlavdulJP
    GuHQBTHYlavdulJP
    asAXStlTtcyfvROb
    Z1xLSZYcQe3KdRaA
    • Carefully lift off the back panel.

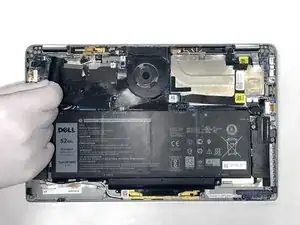

  4. 4AE2tBpfHR66MtE2
    4AE2tBpfHR66MtE2
    gxFRGBYO1O4NTyhR
    • Remove the protective film located at the top left corner of the motherboard.

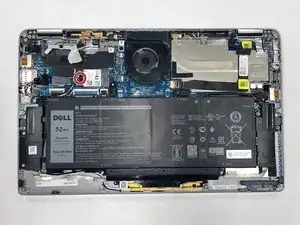

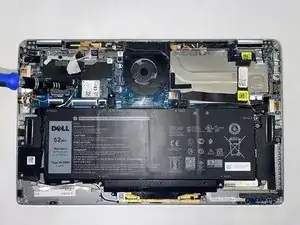

  5. YXtUe1katgf3nUTc
    YXtUe1katgf3nUTc
    NaIIFNZ5eNTOtOCe
    • Use a Philips #00 screwdriver to remove the 2mm screw located above the wifi card.

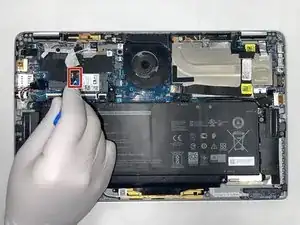

  6. jboWKK1HEBdAShCI
    • Remove the black and white wires located above the wifi card using a blue, plastic spudger.

  7. 5msCFOeR1Zi4QUaM
    • Remove the Wifi card from its slot in the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
