This is an in depth instruction manual to replace the baseplate for your Dell Latitude 9510 laptop. The baseplate, also known as a backplate, is used to protect the inner electronics of the computer from small drops and spills. This is a common replacement due to dropping the device or improperly removing the backplate making it break.
Werkzeuge
Ersatzteile
-
-

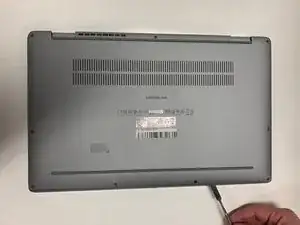

Flip the device so that the base plate is facing you.
-

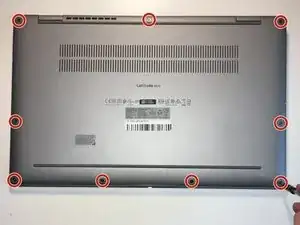

Use a Phillips #0 screwdriver to remove the nine 5.5 mm screws securing the base plate.
-
-
-
Wedge a spudger between the base plate and the chassis, then gently pry around the entire perimeter to release the base plate.
-
Remove the base plate.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
