Dell Latitude D520 disassembly and power jack repair

Geschrieben von: otrebla
  • Kommentare: 3
Dell Latitude D520 disassembly and power jack repair

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

Keine Schätzung

Einleitung

  1. Nre1kgSLqYUCEcwQ

    • 1. unplug laptop

    • 2. remove battery

    • 3. remove screw

    • Remove disk drive by pressing in the pull mechanism, causing it to extend outwards, then use the pull handle to pull out disk drive.

  2. XaQWCEuBYNce1MVJ

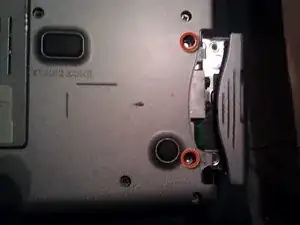

    • remove 2 retention screws

    • slide HD carriage out

    If it is stuck, pry at seam nearest keyboard

    Andrew -

  3. wttrYlVNnu1ToHhR

    • open laptop

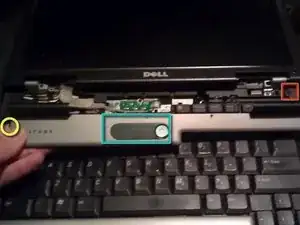

    • with a small screwdriver carefully pry plastic cover

    • it helps to open the laptop all the way

    • be careful not to break these clips

    • The clips found under here were specially tricky

    this part is NOT fun. be careful

    Andrew -

  4. m34euQOHaerusZ5I
    m34euQOHaerusZ5I
    afSmvabWJYvGEsLm
    nORwlQsgt5LQyTlL

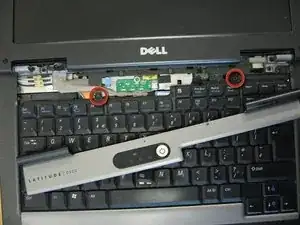

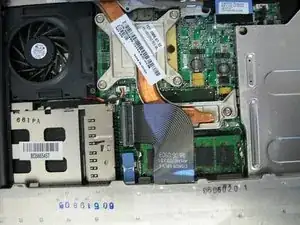

    • remove screws X 2

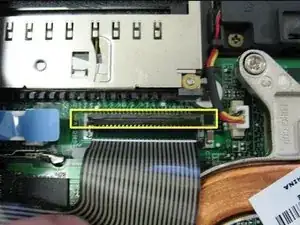

    • carefully lift keyboard, being careful not to damage the flat cable.

    • lift up tab to release flat cable and remove keyboard

  5. xKFWXFPHSsDTXgFg
    xKFWXFPHSsDTXgFg
    P1VVqTSRSYn2mSMc
    KLNZGvKBoi5QPEZA

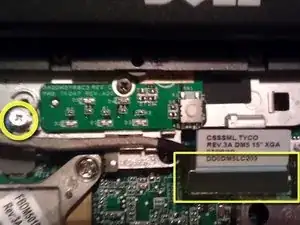

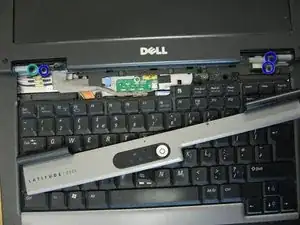

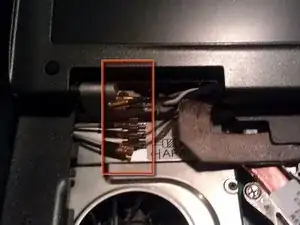

    • disconnect the three wires

    • disconnect video connector

    • remove ground screw

    • remove 3 screws

    • remove last screw, note this screw is longer then the other three

    • remove screen

  6. kHfsHtM1ULKvpZQj
    kHfsHtM1ULKvpZQj
    HWxXqPduvphjFcCI
    PQLyhS5MUMREkRvH

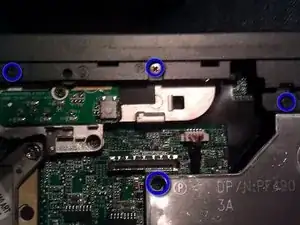

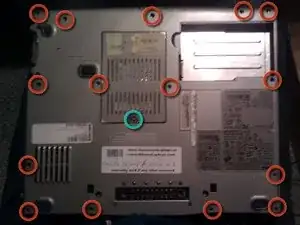

    • Remove these 15 screws, they are all the same size

    • remove screw and cover

    • flip the laptop over

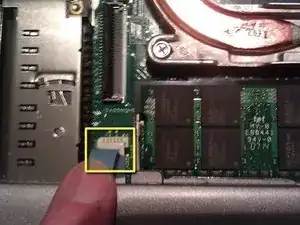

    • remove touchpad flat cable by gently pulling up.

    • remove 4 screws marked with the letter P

  7. D5QaKyQQTTQQhPWI

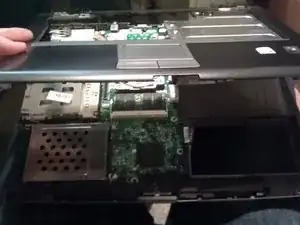

    • remove top cover being careful not to break any clips

  8. QrxZBWrEP2RClsom
    QrxZBWrEP2RClsom
    nsiLJMFpaYxWIfcs

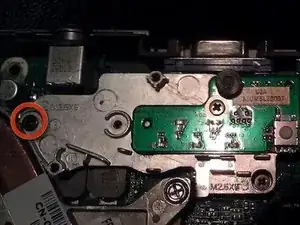

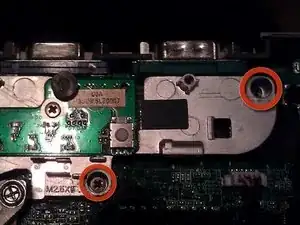

    • remove 3 screws

    • carefully remove small metal piece that was being help down by the three screws

  9. toNvIypM5BgDe6QW
    toNvIypM5BgDe6QW
    DEBDyCR64SlREnXo

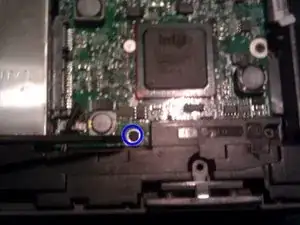

    • remove 4 screws

    • remove 1 screw

    • being careful not to break any clips, separate bottom plastic cover from the mother board carriage.

    There is a screw in the plastic speaker component that goes through the motherboard that needs to be unscrewed as well. It is to the right of the big black B in the aforementioned component.

    TJ the Humble -

  10. ivnHTqLuZnd16qGT

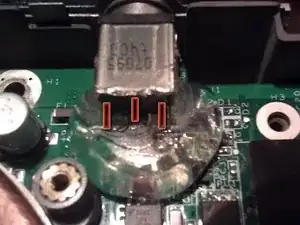

    • The middle part of my power connector had sheared away from its solder points on the motherboard.

    • I had to use a bit of flux, but I managed to re-tin all three contact point on the motherboard, as well as the pins in the connector.

    • I re-soldered the whole thing and used my trusty hot glue gun to encase the whole connector to prevent it from happening again anytime soon.

Abschluss

To reassemble your device, follow these instructions in reverse order.
