Dell Latitude D530 Hard Drive Replacement

Geschrieben von: Kyle Cabral
  • Kommentare: 2
Dell Latitude D530 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

4 Minuten

Einleitung

You can tell if your hard drive is broken if you get a 'hard drive missing/not detected' error upon computer startup. If this is the case, you need to buy a hard drive and replace the old one with it. Most hard drives can withstand being handled, but it is good to be careful with it nonetheless.

  1. i2fmvGjvG2DymZ5D

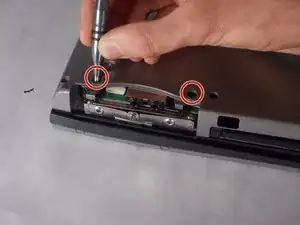

    • The hard drive will be located in the side of the laptop.

    • Unscrew the two bottom 6mm screws using Phillips #1.

  2. os3QMujBEGIMwlTl

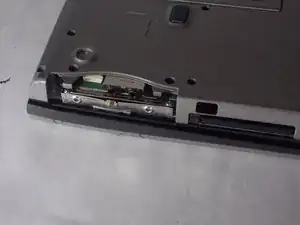

    • Remove cover to hard drive bay.

  3. TpZHSPUlgMrO6jUC
    TpZHSPUlgMrO6jUC
    FyD2p1xk5Vfry1TO

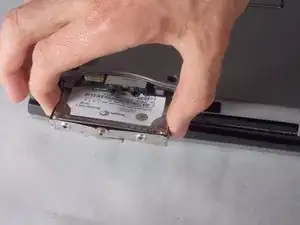

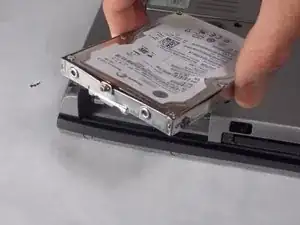

    • Carefully pull hard drive out.

    I have a problem with the same laptop where the drive is not recognised in the bios. Occasionally it will be recognised, but I tried a number of working SSD drives and SATA drives Sam with same problem. I suspect the actual physical connection or sate cable in the unit is the problem. Do you have a breakdown on how to access the cable to reseat or replace the internal cable?

    Jonathan Joffe -

Abschluss

To reassemble your device, follow these instructions in reverse order.
