Dell Latitude D530 Screen Replacement

Geschrieben von: Kyle Cabral
  • Kommentare: 0
Dell Latitude D530 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

10 Minuten

Einleitung

The screen to a device may break due to an accident or suddenly stop to function. If the rest of the laptop is fine and is able to function, the screen can be replaced to restore the laptop to working order. During the replacing process, try to avoid touching any 'do not touch' area's of the replacement screen. This may damage the new screen and another replacement may be needed if so.

  1. OuKmQArbyDTLoqfJ
    OuKmQArbyDTLoqfJ
    HlUWkItF6ekUFS4G
    e2kGKAAhJCCi2lCn

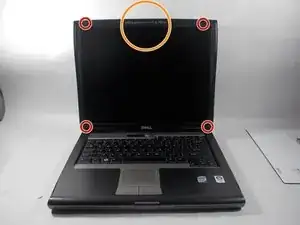

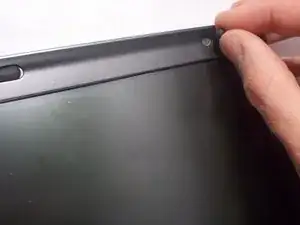

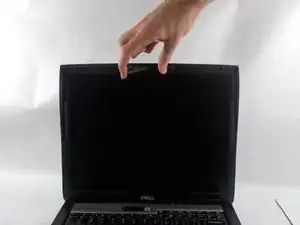

    • Remove the 4 small circle dots from the borders of the laptop screen. Simply pull the dots out of their sockets.

    • Also remove the one longer rubber piece from the top of the screen. Simply peel the rubber piece from its place.

  2. SeErAMVdLaRV3vFC
    SeErAMVdLaRV3vFC
    yuFL6BWH4GlOwbVN
    WTaBDWbkgdrGejNq

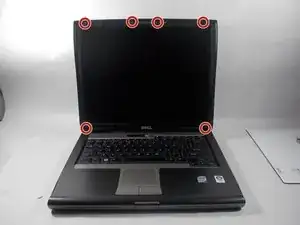

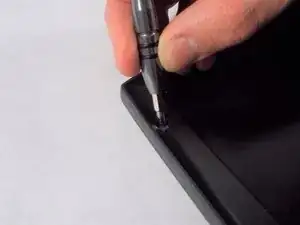

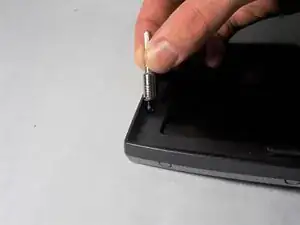

    • Unscrew and remove the 6 6mm screws that were under the rubber pieces using a Phillips #1.

    • If the screws will not come out easily, use the magnetic bit to remove the screws all illustrated.

  3. IBhxCMNEhRZaP6JJ
    IBhxCMNEhRZaP6JJ
    NEUZgsKL1wYUVPoT
    TLTNZrHyDFKIC3CN

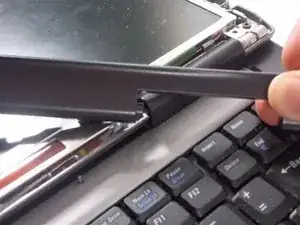

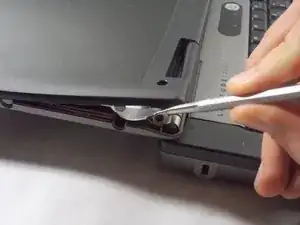

    • Use the spudger to pry the plastic border off.

    • Be sure that the plastic notch at the bottom of the screen is pulled out correctly. Pull the border to the left of the screen and out.

  4. jmH6OIyB1RVYCbnS

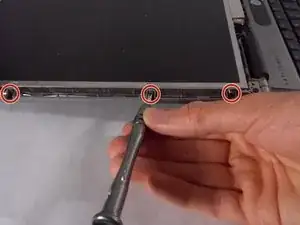

    • Unscrew the 8 6mm screws located on the outer border of the screen using a Phillips #1.

    • There are 4 screws on each side.

  5. yMRAtAcHvkrNvZR3

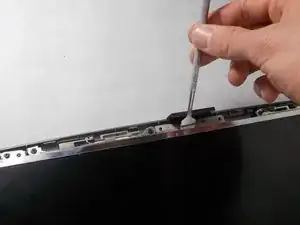

    • Use the spudger to pry the screen up.

  6. EbcYmrGpyuUIBmyC
    EbcYmrGpyuUIBmyC
    NOlX6KP2XJESDax3
    kATuUPD1RpjMS1rl

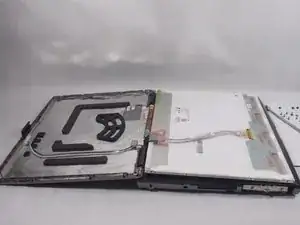

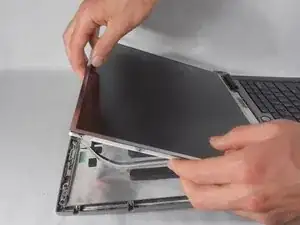

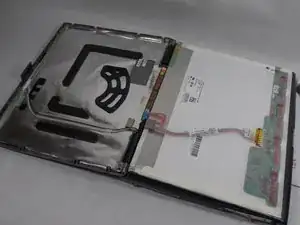

    • Lift the screen up and fold over gently.

  7. FNNWcUrJXgALeyiT
    FNNWcUrJXgALeyiT
    cva65dUIxxlHQSZS

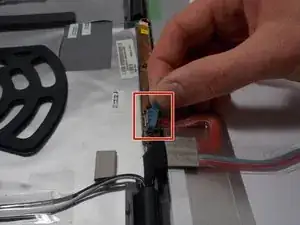

    • Pull on the blue tag sticking out at the bottom of the screen and disconnect the wire.

  8. Z4DdTrdDmQXgYs6K
    Z4DdTrdDmQXgYs6K
    1We1QUhU6FeMQnHg
    byyKTYeLsTk1jMdH

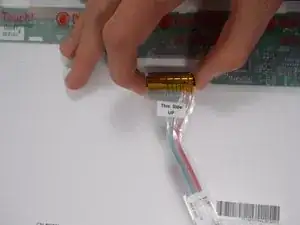

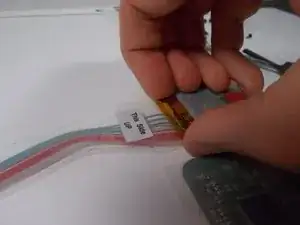

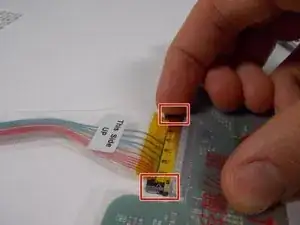

    • Towards the top of the screen on the back, unplug the “this side up” wire.

    • This can be done by squeezing the 2 metal side clips of the wire.

    • This could be difficult so wiggling the wire a little bit may be necessary.

Abschluss

To reassemble your device, follow these instructions in reverse order.
