Dell Latitude D531 Keyboard Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

1 - 3 Minuten

Einleitung

    • Shut down your computer. Disconnect all power sources before opening the computer cover or panels.

    • Remove the battery and hinge cover.

  2. E311h2jiFBSeZLSO

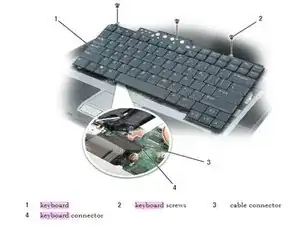

    • Remove the three screws at the top of the keyboard.

    • The keycaps on the keyboard are fragile, easily dislodged, and time-consuming to replace. Be careful when removing and handling the keyboard.

    • Lift the keyboard only enough to hold it up and slightly forward to allow access to the keyboard connector on the system board.

    • To release the keyboard cable from the connector on the system board, rotate the plastic bar on the keyboard connector.

    • To avoid scratching the palm rest when replacing the keyboard, hook the tabs along the front edge of the keyboard into the palm rest, and then secure the keyboard in place.

    • To replace the keyboard, connect the keyboard cable to the connector on the system board.

    • Place the tabs along the front edge of the keyboard into the palm rest, and lay the keyboard down on the palm rest.

    • Replace the three screws at the top of the keyboard.

    • Replace the hinge cover.

    • Install the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
