Dell Latitude D600 RAM (Main Memory) Replacement

Schwierigkeitsgrad

Easy

Schritte

8

Zeitaufwand

5 Minuten

Einleitung

This guide will show how to add RAM or replace existing RAM on the Latitude D600

  1. IsYMuF4OWAQjjyRd

    • Find the battery

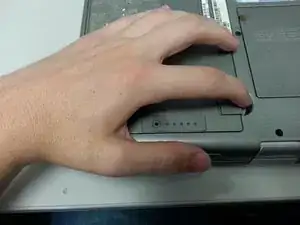

  2. QWcdeEc6oTDFCoii
    QWcdeEc6oTDFCoii
    eaKgnWPSUF5e11HE

    • Pull the tab to release the battery

  3. nZagQA4BHlPagJ1c

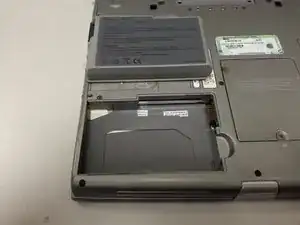

    • Pull the battery out

  4. p2ccxgAtltv5ANoI
    p2ccxgAtltv5ANoI
    SymeRoyZxwKtgOAJ

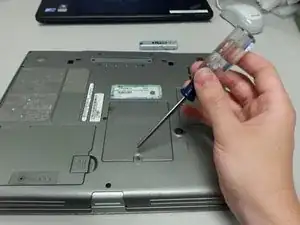

    • Find the panel underneath the microsoft product key sticker, the panel is labeled with an M

    • Unscrew the single screw above the M

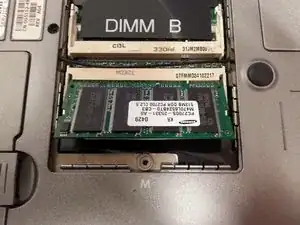

  5. yTnIcRQsMKFUawUP
    yTnIcRQsMKFUawUP
    AyKXU24CPtZEy2id
    TLpGSyU5XuGLsq4l

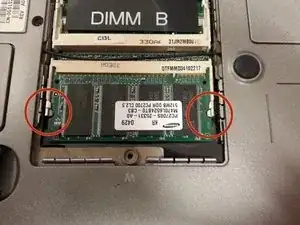

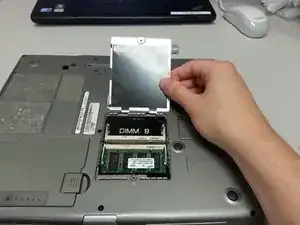

    • Pull off the panel to reveal the RAM

    • RAM is held in by two tabs, pull each tab to the side and the RAM will pop up

  6. enCbQMkhb5SpBRer

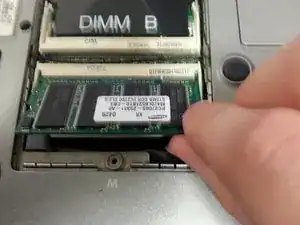

    • Once the RAM is popped up, slowly pull it out of the slot

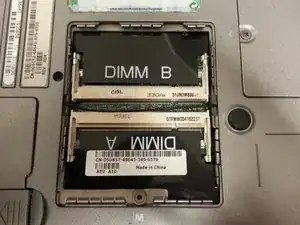

  7. IU5RPLF2SBUIxVsw
    IU5RPLF2SBUIxVsw
    ZSTWJBwxkhcmZBNW
    M3gDWQ4YxroGTTpH

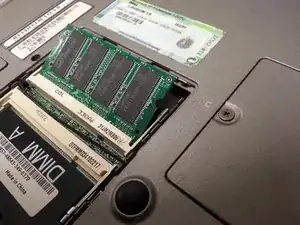

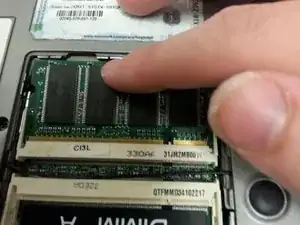

    • To add or replace RAM, place the memory into the slot at an angle

    • Make sure you line it up correctly

    • If it is in correctly it should stay up at an angle by itself

    • Then push down in the middle until it clicks into place

  8. adM1rGB3VXv2MZEZ

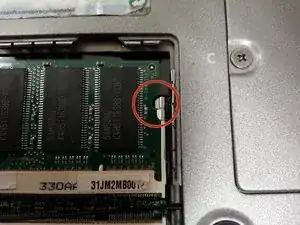

    • The RAM should be secured by the tabs where the two semi circles are on the RAM

    • If it is not secure, just gently pull it out and try again, use the images to help you out

Abschluss

To reassemble your device, follow these instructions in reverse order.
