Dell Latitude D610 Fan Replacement

Geschrieben von: Jordan Barham
  • Kommentare: 0
Dell Latitude D610 Fan Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

10 - 15 Minuten

Einleitung

Replacing a defective fan will stop your computer from overheating, preventing damage and increasing the life of your computer.

  1. bqrUDExSOAYRh2P6
    bqrUDExSOAYRh2P6
    FFSbNeXlh3rQiCAL

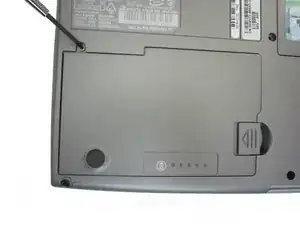

    • Remove the 3.9 mm Phillips #1 screw from the battery compartment.

  2. SsHykOKKdmGJsqSQ
    SsHykOKKdmGJsqSQ
    VEwYSPURCVOlKsQw
    jKvHoruB6PQQIRZI

    • Locate the laptop battery release button lock

    • Push the battery release in the direction of the arrow, and pull upward.

  3. ytK5wt2yqZpGnojd

    • Remove the battery from its compartment.

  4. QYWBpXsFCSaYHbP2
    QYWBpXsFCSaYHbP2
    YoxamUQVHDMJSaqS
    IwlDXesERZm1tXJh

    • Use an opening tool or flat tool to remove the plastic cover above the keyboard.

  5. fSoQUqZPrBSOTXmP
    fSoQUqZPrBSOTXmP
    vDOkHiAL3gDymaPO

    • Remove the two 3.9mm Philips #1 screws that are holding the keyboard in place.

  6. IBT6gjPwDYT5Xrxy
    IBT6gjPwDYT5Xrxy
    heiIXNYytj2CKfNb

    • Using an opening tool, carefully release the keyboard from the case.

    • Making sure not to tear or damage the wires still connecting it to the laptop.

  7. mKtpZyVrVstlPwEZ
    mKtpZyVrVstlPwEZ
    pUgIJ5gkcqtqPVde
    RkdIrTqaQMGKltdO

    • Carfully lift the key board.

    • Lift only about 3 - 4 inches so that the wires holding the keyboard do not get damaged.

    • Pull on the blue tab to unplug the keyboard.

  8. lVFBWtK3xtTk6UMg
    lVFBWtK3xtTk6UMg
    cukJLurU5OH6HX6P

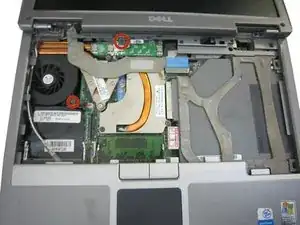

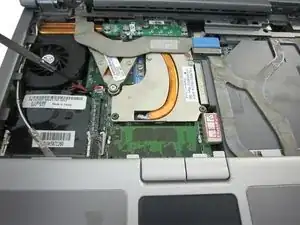

    • Remove the two 3.9mm Philips #1 screws from the case.

  9. IYtkg6LNXyxoiosx
    IYtkg6LNXyxoiosx
    skkphyVvMnxanXJh

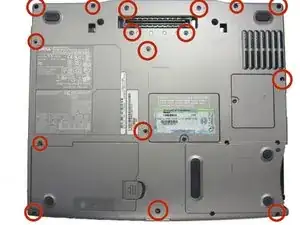

    • Remove the sixteen 3.9mm Philips #1 screws from the back.

  10. OyMmZtBeU3VpNPEt
    OyMmZtBeU3VpNPEt
    kPRPSyXLVTbeqYKo
    mxJDFBVdmYNdsIgW

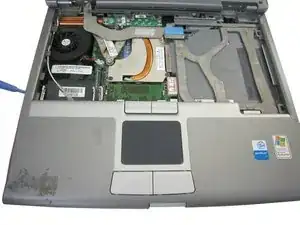

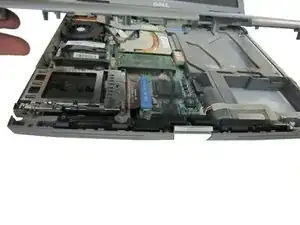

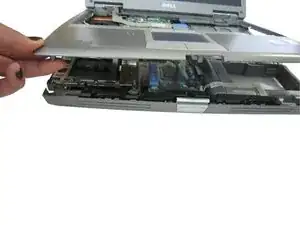

    • Turn the computer over. Using an opening tool seperate the top cover from the rest of the frame.

    • Do not open the computer too widely or quickly. Doing so will result in damage to the computer.

  11. WwKC23L1dckfXIMT
    WwKC23L1dckfXIMT
    C1vWYtZl3TUAAeeu
    r2REEHxyOYJ3kDh5

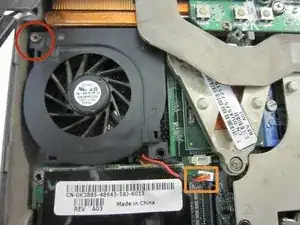

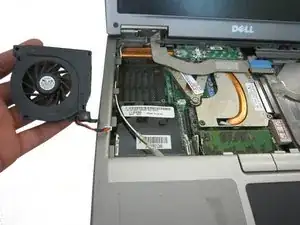

    • Remove the 3.9 mm Philips #1 screw.

    • Unplug the fan cable.

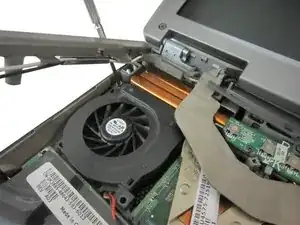

    • Lift fan out of compartment to remove the fan.

Abschluss

To reassemble your device, follow these instructions in reverse order.
