Dell Latitude D610 RAM Replacement

Schwierigkeitsgrad

Very easy

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

Replacing a defective RAM component is pretty easy and can stop your computer from frequently crashing.

  1. bqrUDExSOAYRh2P6
    bqrUDExSOAYRh2P6
    FFSbNeXlh3rQiCAL

    • Remove the 3.9 mm Phillips #1 screw from the battery compartment.

  2. SsHykOKKdmGJsqSQ
    SsHykOKKdmGJsqSQ
    VEwYSPURCVOlKsQw
    jKvHoruB6PQQIRZI

    • Locate the laptop battery release button lock

    • Push the battery release in the direction of the arrow, and pull upward.

  3. ytK5wt2yqZpGnojd

    • Remove the battery from its compartment.

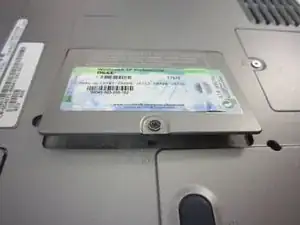

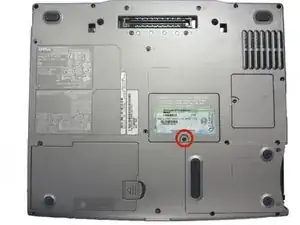

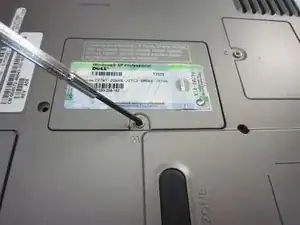

  4. dj12LQGc2jWbCgeW
    dj12LQGc2jWbCgeW
    NQSHOdKDD3OUuQnv
    3RPkSTSCpLZlCAbY

    • Remove the 3.9mm Philips #1 screw holding the panel for the RAM.

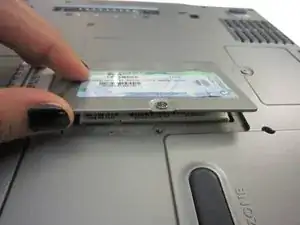

  5. mUyoO2EUe1kNqTjl
    mUyoO2EUe1kNqTjl
    yuc3JyI2WOT6W2Vn

    • Lift and remove the panel.

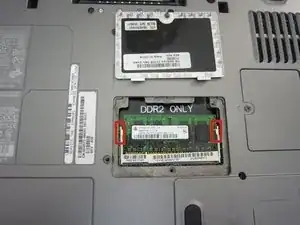

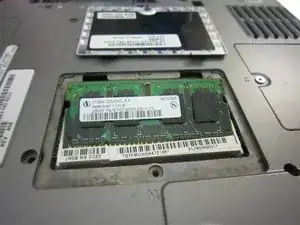

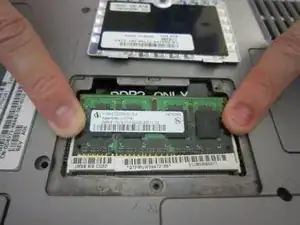

  6. tde2SbFcqjbJmBjL
    tde2SbFcqjbJmBjL
    L6lPZHYl4QlTVX4V
    tMsKaCshsBIHCTfE

    • Using two fingers, push the silver ends away from the RAM until the RAM is released.

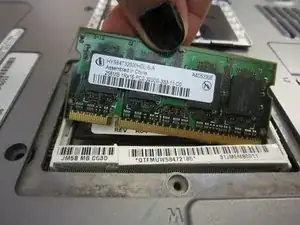

  7. BsPQvVkPM3XcuPxM
    BsPQvVkPM3XcuPxM
    EYQWxKQFu426sIyI
    5tVpyh1Vom35jmdZ

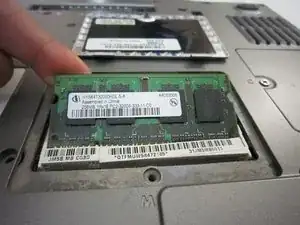

    • Lift the RAM from its slot.

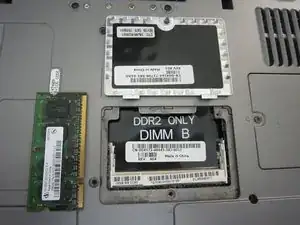

    • Remove the RAM completely.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Jordan Barham

Mitglied seit: 27/01/14

447 Reputation

Ein Kommentar

This model has two RAM slots. The second one is under the keypad. Carefully remove the bezel at the top of the keypad, remove the two screws holding the keypad down, then remove the keypad to expose the second slot. This RAM slot is a little bit more difficult to get to than the one on the back of the laptop, but is still very easy to access and change out.
