Introduction
The hard drive is where you store permanent files on your laptop. If your hard drive is damaged and does not operate properly any more, or you simply want a larger and/or faster one, you can replace it with a new one.
This guide will teach you
- Where the Hard Drive is located
- how to remove safely
- Tools needed to complete the replacement
Werkzeuge
Ersatzteile
-
-
Shutdown the computer, detach it from any power source, and make sure the laptop is closed with its latch securely shut.
-
Turn the laptop over so its bottom is facing you.
-
-
-
Using two index fingers, slide the battery latches outward.
-
While still holding the latches out, use your thumbs to slide the battery out towards you.
-
Once the battery is dislodged, you can let go of the latches and remove the battery.
-
-
-
Position the closed laptop upside down.
-

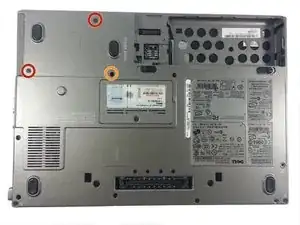

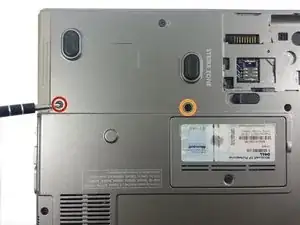

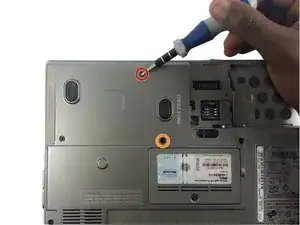

Unscrew the screw closest to the hard drive opening and the one diagonally to the right. This will loosen the hard drive.
-
Do not unscrew this screw!
-
-
-
Place thumb on the hard drive cover and get a firm grip.
-

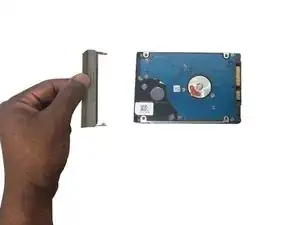

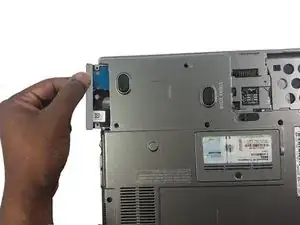

Pull the hard drive out slowly to avoid any further damage to the laptop.
-
To reassemble your device, follow these instructions in reverse order.
