Dell Latitude D630 Wireless Card Replacement

Geschrieben von: Jon Amireh
  • Kommentare: 3
Dell Latitude D630 Wireless Card Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 - 30 Minuten

Einleitung

Introduction

The wireless card is what allows us to connect to with out the use of a ether cable. This is a very important component and must be replace if damaged.

This Guide Will Teach You

  1. The basic safety steps to follow when fixing the laptop
  2. To disassemble of the laptops internals and reach the Wireless card
  3. Precautions to prevent further damage to the laptop
  4. Tools needed for the repair

  1. BUMuKHBgGWmE1WDP

    • Shutdown the computer, detach it from any power source, and make sure the laptop is closed with its latch securely shut.

    • Turn the laptop over so its bottom is facing you.

    • The laptop pictured comes with a palm rest attached to the battery case. This part may not be present on your laptop. Regardless, the steps are exactly the same.

  2. U6U2bBvNcI2ndqvl

    • Using two index fingers, slide the battery latches outward.

    • While still holding the latches out, use your thumbs to slide the battery out towards you.

    • Once the battery is dislodged, you can let go of the latches and remove the battery.

  3. Mn2XCAkNhVVkcIms
    Mn2XCAkNhVVkcIms
    ETTXffVYnXerDmTR
    XlQON1VATQVke2wC

    • With the battery removed, turn the laptop face up and open the lid a complete 180 degrees.

    • Using a plastic opening tool, pry off the corner of the keyboard bezel by undoing the tab.

    • Once you've removed the corner of the bezel, you can use your hands to slowly, but with moderate force, pull the rest of the bezel slightly up and towards you to release the remaining tabs.

  4. VktiIt2MAUrpZtxe

    • Remove the three 3mm Phillips #0 screws securing the keyboard.

  5. gv6OdyUtxA6wLlDa
    gv6OdyUtxA6wLlDa
    x6KoYMkq665jVKQG

    • Slowly bring the keyboard up and fold it back onto the touchpad.

    • Be careful not to pull too hard or too far when folding over the keyboard. The keyboard is still connected to the motherboard by a short ribbon cable.

  6. gSxJhUBDCGZI3TEl
    gSxJhUBDCGZI3TEl
    c4Xrdg1SC34CEW1Z

    • Use a plastic opening tool to unhook the blue latch that secures the keyboard cable.

    • Using the blue tab, pull the keyboard cable connector from its socket on the motherboard.

  7. RlhrCfQtDWGQsUTH

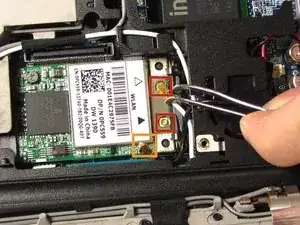

    • Remove the black and white cables on the wireless card with the tweezers by pulling upward.

    • The black has already been removed in the image to show before and after.

  8. ALmBXJmqJXwnGuXg

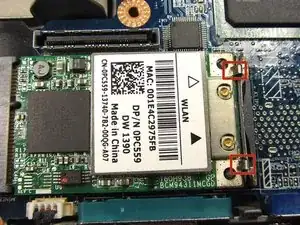

    • Push on the tabs indicated in the picture until the card pops up slightly then pull the card out at an angle.

    How do You connect a card with three posts ?

    Chuck Hendricks -

Abschluss

To reassemble your device, follow these instructions in reverse order with your new wireless card.

Tinte & Feder

Jon Amireh

Mitglied seit: 17/01/13

1660 Reputation

2 Kommentare

1) You don't have to disconnect the keyboard cable to replace the WiFi card.

2) You may have three wires connected to the wifi card, disconnect all three

3) If your new wifi card has three sockets the grey lead heading off towards the front of the machine is for the middle socket; it has a plastic wrapper that can be slid off.

Robert de Bath -

What type of Wi-Fi card is needed to be ordered to make it dual-band AC compatible?

Jake Brown -
