Einleitung
This will allow you to properly remove and replace the keyboard.
Ersatzteile
-
-
Remove the charger from the laptop.
-

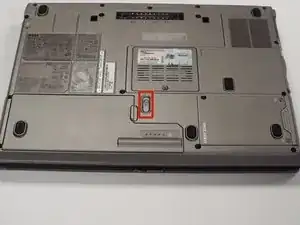

Turn the laptop over and locate the battery slide lock. Slide the switch and gently lift up the battery.
-
If you are replacing other components, leave the battery out.
-
If you are only replacing the battery, reverse the steps to install a new battery.
-
-
-
Open laptop lid and extend screen until it is parallel with the keyboard.
-

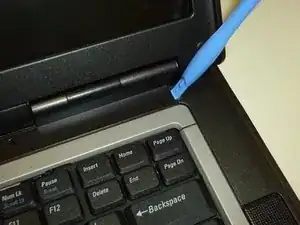

Locate the notch in the upper right corner of the keyboard (just above the 'page up' button).
-

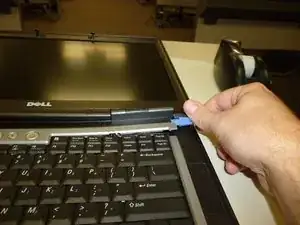

Insert the plastic spudger and very gently lift the faceplate. It will make a soft snapping sound.
-
Set aside.
-
-
-

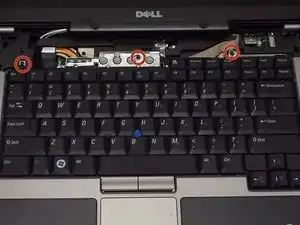

Locate the three philips head screws above the keyboard. One is above the 'Pause/Break' key; one above the F7 key and one above the 'Esc' key. Remove all three.
-
-
-
Gently lift top of keyboard and lay forward on palm rest.
-

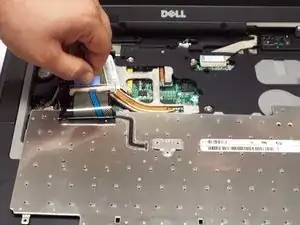

Locate blue pull tab and gently disconnect ribbon cable from motherboard.
-
To reassemble your device, follow these instructions in reverse order.
