Einleitung

  1. EtSTTgUvq3cXswWV
    • Orient the laptop so that the back is facing you.

    • With a phillip's head screwdriver, remove the two screws on the back corners of the laptop.

  2. h1BPaNRAYHAb2nme
    • Flip the laptop over, with the opening still facing toward you.

    • With a phillip's head screwdriver remove the two screws in the upper two corners

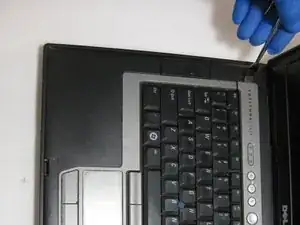

  3. s3NM6yJ3OQWElHSv
    • Open the laptop up, displaying the keyboard and screen.

    • Take a spudger and insert it under the left edge of the panel located between the keyboard and screen.

    • Use the spudger to pry under the panel.

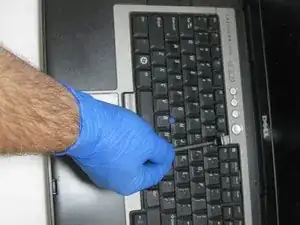

  4. vfhKGEqNudxHN4xX
    • Place the spudger under the middle of the panel and use it to pry the panel off.

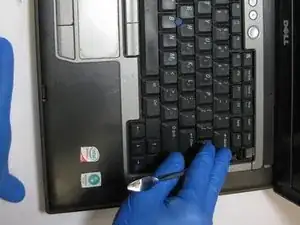

  5. x2jovkyBssDHVNo1
    • Place the spudger under the right side of the panel and use it to pry the panel off.

    • If additional help is needed place the spudger in various places around the edge of the panel.

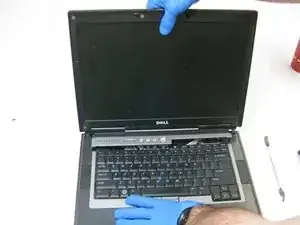

  6. SwmexBiJRPmfD5TR
    • After the panel has been popped off you must the pull the screen up as shown in the picture.

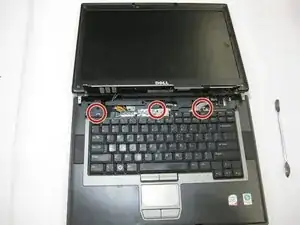

  7. vvpiDSvfc3RKd2U6
    • The screen will only be connected by the wiring.

    • Take the screen and gently lay it on the table as shown.

    • Now you must remove the three screws marked in the picture.

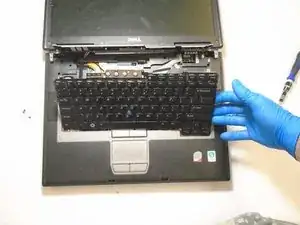

  8. 6UYBCJrvkNEAJDH5
    • After removing the three screws, slide the keyboard out so the mainframe of it is loose.

    • There is still a component attached underneath.

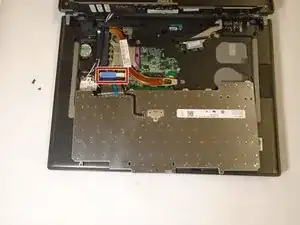

  9. MiIjOWfGuf5wEiVD
    • The highlighted item should be the only component holding the keyboard.

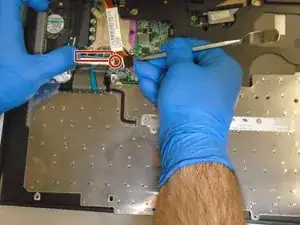

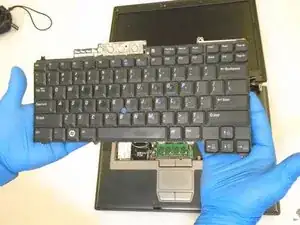

  10. o6HQ4lFZZyOJn6Ig
    o6HQ4lFZZyOJn6Ig

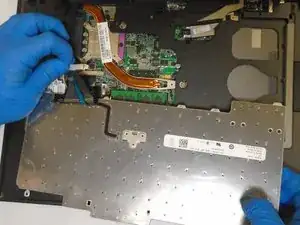

    VtGGQ4cOPhHImUdU
    OdFwHxynFRraIJUE
    • Where the highlighted rectangle is, there is a silver lever that you must push back.

    • Then where the highlighted circle is, you must take a spudger and push in.

    • This will then pop the white clip off, and the keyboard will be completely free.

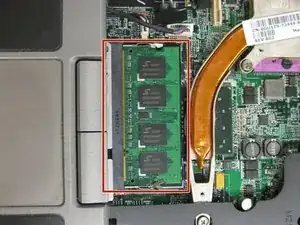

  11. i2OlPCYpSDJXVbm6
    • Once the keyboard has been removed you will see many of the circuit boards that lie underneath it.

    • The item highlighted is the RAM.

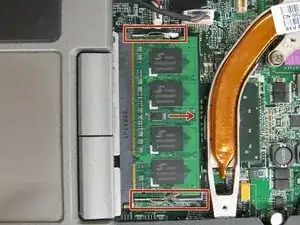

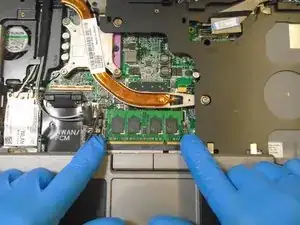

  12. sDGcLJBFQSjxrYEa
    sDGcLJBFQSjxrYEa
    FHj4TLTxSD4hCpNS
    • The two clips highlighted are what hold the RAM in place.

    • Each of the clips should be pushed outward, freeing the RAM

    • The edge of the RAM that the arrow is pointing to should the be pulled, removing the RAM

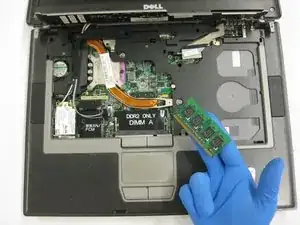

  13. Kk2sZDonICahvNSw
    • The RAM is now removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
