Follow the guide steps in order to remove the computers front panel successfully. It is essential for removing the keyboard and accessing other components located on the front of the main board.

  1. YMDTlXgeOFImt4go

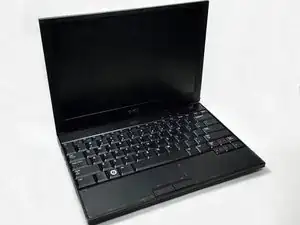

    • Open computer.

  2. AXTsVbncvbFwk5ZJ

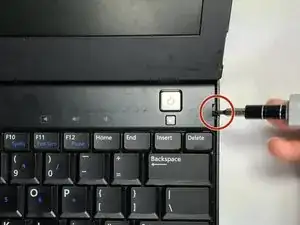

    • Slide any tool with a flat surface under the side bottom right corner of front panel and pry the front panel out of place.

    • A small flat head screwdriver would be an ideal tool to use during this step.

  3. QCrQPY6xvWWyUEAj

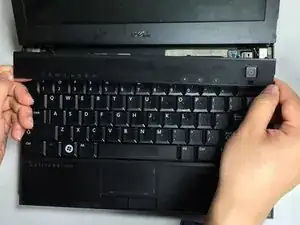

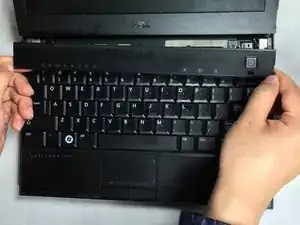

    • Once out of place, position your thumbs under the bottom of the panel and pull upwards.

Abschluss

To reassemble your device, follow these instructions in reverse order.
