Dell Latitude E4300 Hard Drive Replacement

Geschrieben von: Ryan Blakey
  • Kommentare: 4
Dell Latitude E4300 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 - 7 Minuten

Einleitung

Is your laptop out of storage or not reading files correctly? Consider using this guide to replace the hard drive of your laptop.

  1. GHEHWdGlw3SVOIpH

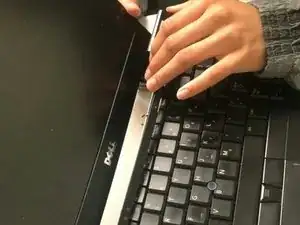

    • Open the laptop and remove the small panel located above the keyboard.

  2. Zptkd4orckymRDQH

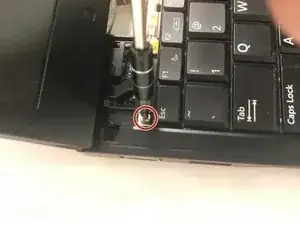

    • Using a Phillips 1 Screwdriver, unscrew the three M2x3-mm screws located above the keyboard where the small panel was originally.

  3. PuUwsAadU6aBFDTB

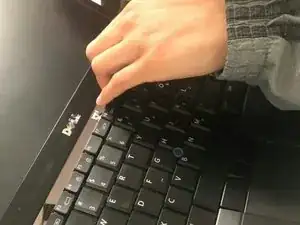

    • Pull off keyboard forward and then outwards.

    • The keyboard is fragile, so make sure you pull the keyboard off carefully.

  4. EOoXakRWMon2CMYW

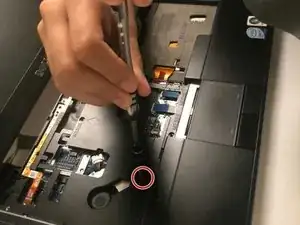

    • With your Phillips 1 screwdriver, unscrew the five M2.5x5-mm screws and the five M2.5x8-mm screws that lie underneath the keyboard panel.

    • Be aware there are two deeply recessed screws on both sides to the rear of this panel. There are also two screws externally on the rear face either side of the battery that hold the monitor on and pass through this panel, support the screen when you remove these. There are also two screws above the hard drive bay that need to be removed.

  5. 5YytrpEMkTMYCKkB
    5YytrpEMkTMYCKkB
    EcoOTgwVfopVpj5w

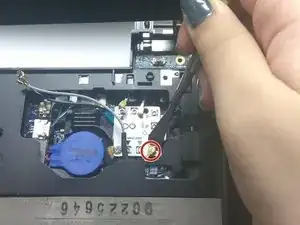

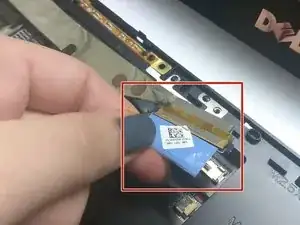

    • Remove additional wires located within the panel.

    • For the smaller wires, try using a spudger for easier access.

  6. Qk6qhgbvpB2AGiXd

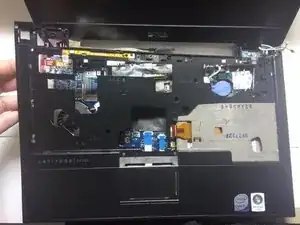

    • Lift the keyboard panel to separate the component from the rest of the device.

  7. Tqo1dNlNaOQwU2Rj
    Tqo1dNlNaOQwU2Rj
    WTADNbFidRYCZCRH

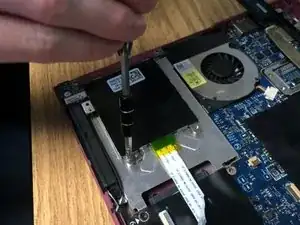

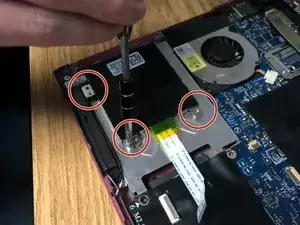

    • Unscrew the three screws located on the top of the component.

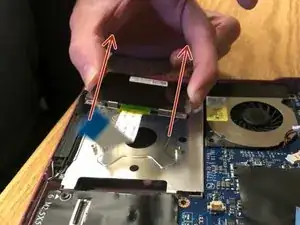

    • Lift the hard drive out of its holding in an outward motion and remove it from the device.

    This is card reader, hdd is below, held by 2 screws accesible from the bottom side of the notebook. Afterwards just pull it out. No need to open notebok, remove keyboard nor display..

    Yen Tom -

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Ryan Blakey

Mitglied seit: 24/09/18

172 Reputation

3 Kommentare

What!?! You can simple remove the hard drive by undoing two screws on the bottom of the laptop. Then you can remove the bezel from the laptop by undoing one more screw. It’s detailed in the service manual on the Dell website.

Rob Walter -

I agree with Rob. It’s been made very easy. Pretty much the same as model E4310 here Dell Latitude E4310 Hard Drive Replacement.

Gwenole Capp -

OK well, there’s no any need for such a BIG job actually! :)

Tarmo Tuljak -
