Dell Latitude E4300 LED Dashboard Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

1 - 3 Minuten

Einleitung

    • Shut down your computer. Disconnect all power sources before opening the computer cover or panels.

    • Remove the battery from the computer.

    • Open the display as far as it will go.

  3. 1Fqgj4yZvbW2BO6p

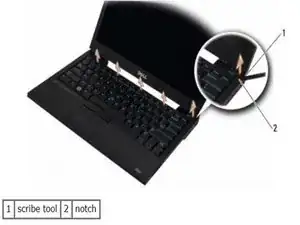

    • Insert a plastic scribe into the notch on the right side of the LED dashboard cover beside the power button, and carefully pry it up to loosen the LED dashboard cover.

    • Remove the LED dashboard cover.

    • Slide the left end of the LED dashboard into place, and then gently apply pressure to seat the tabs.

    • Moving to the right, apply pressure along the LED dashboard cover to seat the tabs.

Abschluss

To reassemble your device, follow these instructions in reverse order.
