Dell Latitude E4310 MiniCard Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 Minuten

Einleitung

This guide walks through the steps of locating and removing the WLAN card on your Dell Latitude E4310 Latptop.

  1. IvpIr6DSTwFIH2Mw
    IvpIr6DSTwFIH2Mw
    BSdSMNLmEWwSZvIw
    kJRXOVcTiSuUXIpI

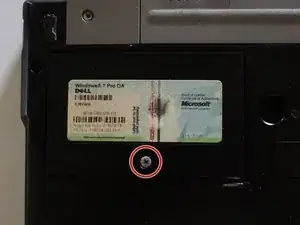

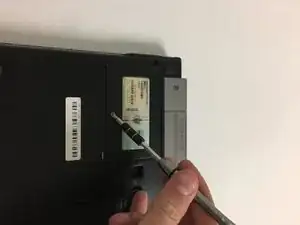

    • Remove the single Phillips #1 screw.

    • This screw will not necessarily come off of the panel.

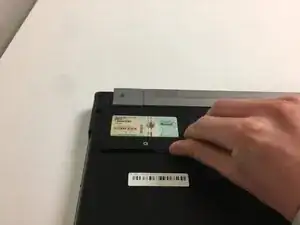

    • Lift up and remove with your fingernail, or a spudger, from the side of the door with the screw.

  2. cLnalFHMTHIoXfQS

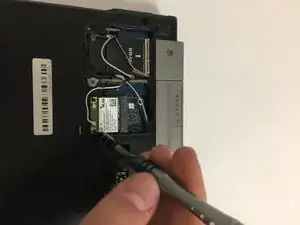

    • Remove the single Phillips #1 screw.

  3. vtllMG2QQZmZHc5g
    vtllMG2QQZmZHc5g
    icdLJeFICSobPxbM
    LZESjcLPEauH2ZtC

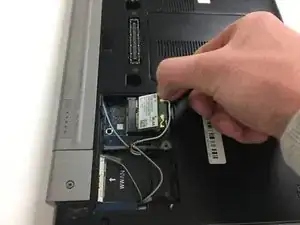

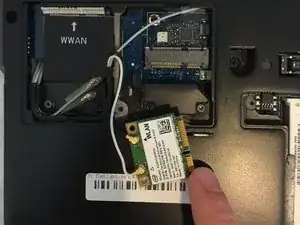

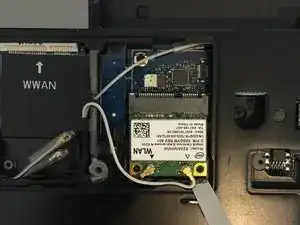

    • Use a spudger to pry up the card.

    • Pull the card up and out of its slot.

  4. tKQSeAuvtv4S1PiB
    tKQSeAuvtv4S1PiB
    FCEiJECrEIneIcKL
    NGERyIXcxa6oawru

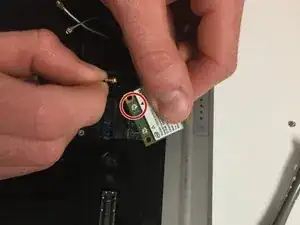

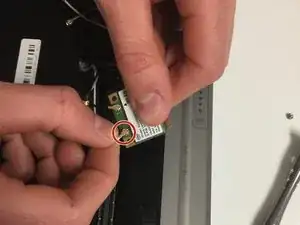

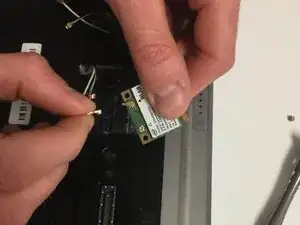

    • Pull the white and black antenna cables off of the card.

    • Make note of these connectors (mark with a marker or pen) as they must be the right connectors for the card to work properly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
