Dell Latitude E5430 (RAM) Memory Replacement

Geschrieben von: Marvin Romero
  • Kommentare: 0
Dell Latitude E5430 (RAM) Memory Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

1 - 2 Minuten

Einleitung

  1. vySJ2cx3gkqfsKAL
    vySJ2cx3gkqfsKAL
    C1QVhtjR2SvWBZUZ

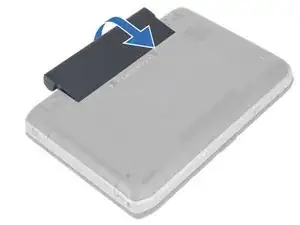

    • Slide the battery release latches into the unlock position.

    • Remove the battery from the computer.

  2. RLVqfgSkJsIwkHBS
    RLVqfgSkJsIwkHBS
    uVlIpOxR1sRvoVLZ

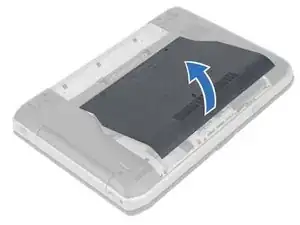

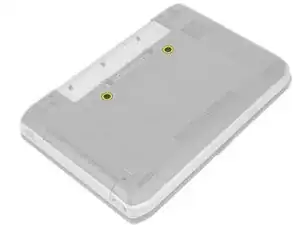

    • Remove the screws that secure the access panel.

    • Slide the access panel towards the front of the system and remove it from the computer.

  3. LIyZZjXB5vBQC5n6

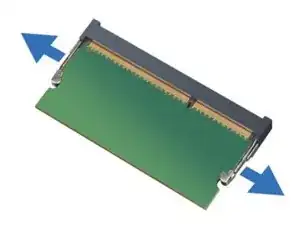

    • Pry the retention clips away from the memory module until it pops up.

  4. nP3f22fMNM154xAq

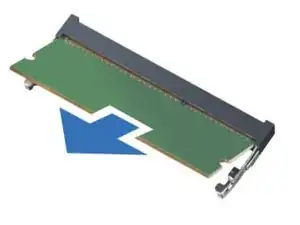

    • Lift up the memory module and remove it from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
