Dell Latitude E5440 RAM Memory Replacement.

Geschrieben von: Marvin Romero
  • Kommentare: 0
Dell Latitude E5440 RAM Memory Replacement.

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

1 - 3 Minuten

Einleitung

  1. JyueY5qR2GiUdLBN

    • Slide the battery release latches into the unlock position.

    • Push and remove the battery from the computer.

  2. SAPAcCxQK4dKJdOX

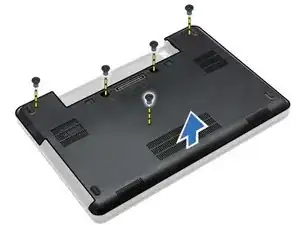

    • Remove the screws that secure the base cover.

    • Pry the base cover towards the front of the computer and remove it from the computer.

  3. JHdOPJxZ3tV6djTQ

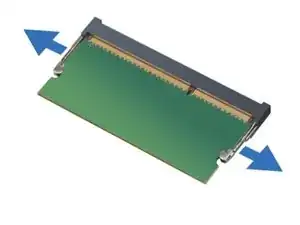

    • Pry the retention clips away from the memory module until it pops up.

  4. SBRuPaENMeYjRkCH

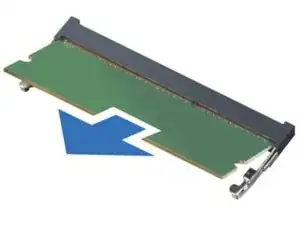

    • Lift up the memory module and remove it from the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
