Dell Latitude E5450-5450 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

2 - 4 Minuten

Einleitung

  1. FTQXHq1nlT6VdW4p

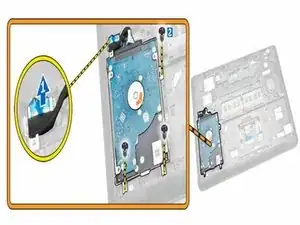

    • Disconnect the hard-drive cable from its connector on the system board

    • Remove the screws that secure the hard-drive assembly to the computer

  2. 6WUNZ5D5RaYhnYCN

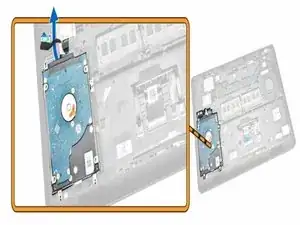

    • Remove the hard-drive assembly from the computer.

  3. uULSlGZTrHVFTpAp

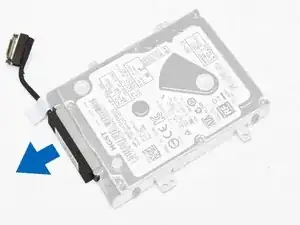

    • Pull to release the hard-drive cable from its connector

  4. LZ6OjRlWWpHcmpJJ

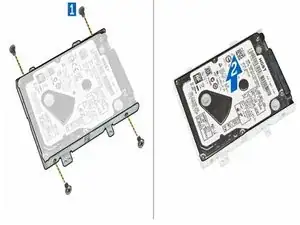

    • Remove the screws that secure the hard-drive bracket to the hard drive [1] and remove the hard drive from the hard-drive bracket [2].

Abschluss

To reassemble your device, follow these instructions in reverse order.
