Dell Latitude E5550-5550 Hard Drive Replacement

Geschrieben von: Hezekiah Brown
  • Kommentare: 0
Dell Latitude E5550-5550 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

11

Zeitaufwand

1 - 3 Minuten

Einleitung

    • Shut down your computer. Disconnect all power sources before opening the computer cover or panels.

    • Remove the battery and base cover from the computer.

  2. Ciuywxhr2SbOX2Qa

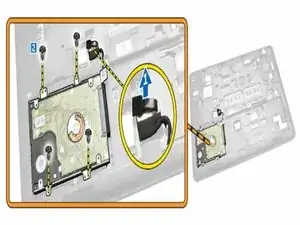

    • Disconnect the hard-drive cable from its connector on the system board [1] .

    • Remove the screws that secure the hard-drive assembly to the computer [2].

  3. AIwrAPgdEWO5LGMw

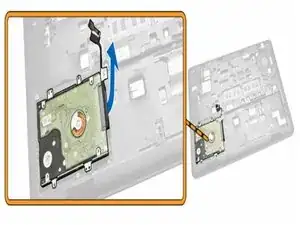

    • Remove the hard-drive assembly from the computer.

  4. JmDX6IqncATMGlk2

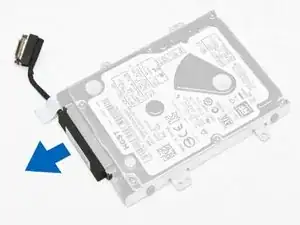

    • Pull to release the hard-drive cable from its connector.

  5. o6b1WRwC23sib6sT

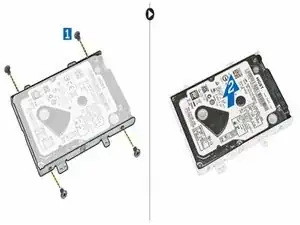

    • Remove the screws that secure the hard-drive bracket to the hard drive [1] and remove the hard drive from the hard-drive bracket [2].

    • Place the hard-drive bracket on the hard drive to align the screw holders and tighten the screws to secure the hard-drive bracket.

    • Connect the hard-drive cable to its connector on the hard drive.

    • Place the hard-drive assembly into its slot on the computer.

    • Connect the hard-drive cable to its connector on the system board.

    • Tighten the screws to secure the hard-drive assembly to the computer.

    • Install the battery and base cover.

Abschluss

To reassemble your device, follow these instructions in reverse order.
