Dell Latitude E6230 Battery Replacement

Geschrieben von: Kai Wang
  • Kommentare: 0
Dell Latitude E6230 Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

4

Zeitaufwand

30 Sekunden - 5 Minuten

Einleitung

If your Dell Latitude E6230 is suffering from battery problems, use this guide to replace your battery.

Before using this guide, make sure that the problem with your laptop originates from the battery, as some issues with battery life can be due to other factors. There are multiple tools to check this, such as Windows's Battery Report.

Before beginning, make sure your laptop is not plugged in and is powered off. Step 4 of the guide will go over reinserting the battery. Take care to not force the battery in or puncture it in any way.

  1. VkwoWiJLRRQFUPLd

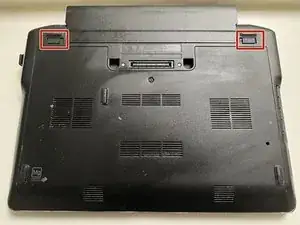

    • Flip the laptop over, so that the latches next to the battery are visible.

  2. 5TnyUhXZrEvpyvtr
    5TnyUhXZrEvpyvtr
    g56J6YFCMepwnZqU
    DbwpvVF1R4IHUqVf

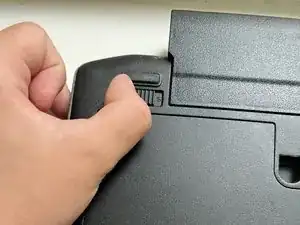

    • Pull the two latches next to the battery in opposite directions.

    • There should be a clicking noise made when this step is complete.

  3. fylRXI3XvD2yApE2
    fylRXI3XvD2yApE2
    CoCPtXL3CbBghjGj

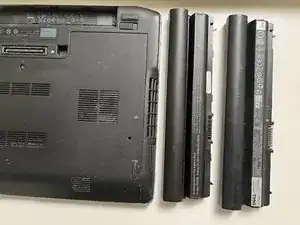

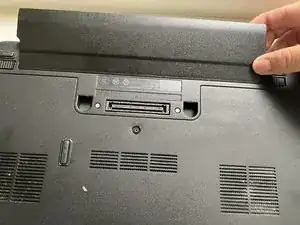

    • Carefully lift the back of the battery and take it out of the laptop.

  4. ThjmesBTXDIDhu1W
    ThjmesBTXDIDhu1W
    jwtrDZ1QnMEIuRIY

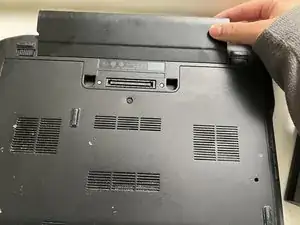

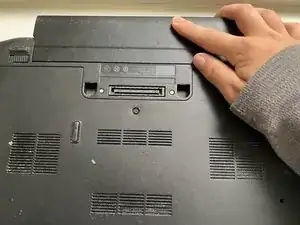

    • Push the back of the new battery into the slot, and push downwards carefully.

    • You will hear a clicking noise when the battery is connected.
