Dell Latitude E6320 Base Cover Replacement

Geschrieben von: Hezekiah Brown
  • Kommentare: 0
Dell Latitude E6320 Base Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

1 - 3 Minuten

Einleitung

    • Shut down your computer. Disconnect all power sources before opening the computer cover or panels.

    • Remove the battery from the computer.

    • Remove the Secure Digital (SD) Card.

  3. 6mnIpoUWCCAongxI

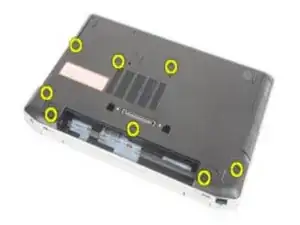

    • Remove the screws that secure the base cover to the computer.

  4. VpybGJ6mhsLgS2tY

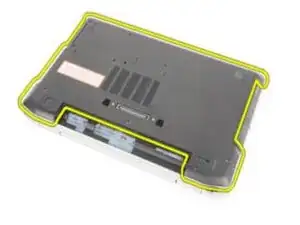

    • Lift the base cover up and away from the computer.

    • Place the base cover to align the screw holes correctly with the computer.

    • Replace and tighten the screws to secure the base cover to the computer.

    • Install the Secure Digital (SD) Card and battery to the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
