Dell Latitude E6320 CMOS (CR2032 coin-cell time battery) Replacement

Geschrieben von: Hezekiah Brown
  • Kommentare: 0
Dell Latitude E6320 CMOS (CR2032 coin-cell time battery) Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

1 - 3 Minuten

Einleitung

    • Shut down your computer. Disconnect all power sources before opening the computer cover or panels.

    • Remove the battery, secure SD card, and base cover from the computer.

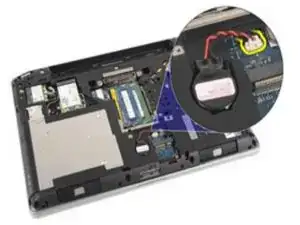

  2. wPob5UqPbksEtWBO

    • Disconnect the coin-cell battery cable from the system board.

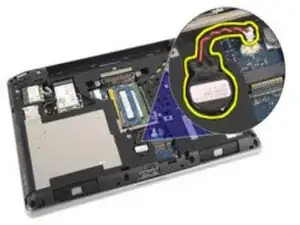

  3. QZbwehncci1yZ2qL

    • Release and remove the coin-cell battery from the computer.

    • Place the coin-cell battery in its location.

    • Connect the coin-cell battery cable to the system board.

    • Install the base cover, secure SD card, and battery to the computer.

Abschluss

To reassemble your device, follow these instructions in reverse order.
