Dell Latitude E6320 Hard Drive Replacement

Geschrieben von: Hezekiah Brown
  • Kommentare: 0
Dell Latitude E6320 Hard Drive Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

1 - 3 Minuten

Einleitung

    • Shut down your computer. Disconnect all power sources before opening the computer cover or panels.

    • Remove the battery from the computer.

  2. AeTEwZ6qB3VSWLOF

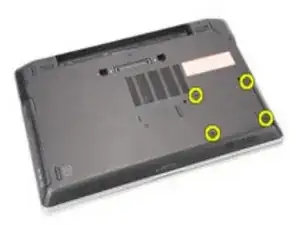

    • Remove the screws that secure the hard drive to the computer.

  3. FhQBBZiMUQSnHAeX

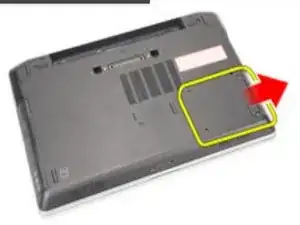

    • Slide and remove the hard drive out of the computer.

  4. pZdhxPJCxZ26SrEN

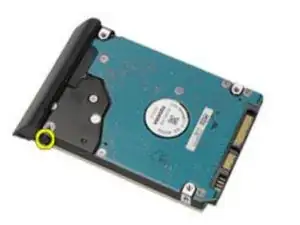

    • Remove the screw that secures the hard-drive caddy to the hard drive.

  5. UIZJPHsGhv51FQgC

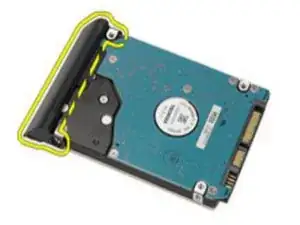

    • Pull and remove the hard-drive caddy away from the hard drive.

    • Attach the hard-drive caddy to the hard drive.

    • Tighten the screws to secure the hard-drive caddy to the hard drive.

    • Slide the hard drive into the computer.

    • Replace and tighten the screws that secure the hard drive to the computer.

    • Install the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order.
