Dell Latitude E6330 Memory Chip (RAM) Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

1 - 2 Minuten

Einleitung

    • Shut down your computer. Disconnect all power sources before opening the computer cover or panels.

    • Remove the battery and base cover from the computer.

  2. DQXZE2APedUB6kYP

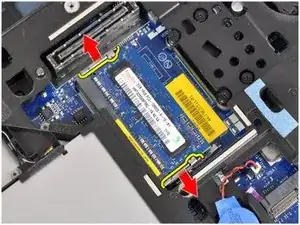

    • Pry the securing clips away from the memory module until it pops up.

  3. JI3SvOXmXP2D3OM5

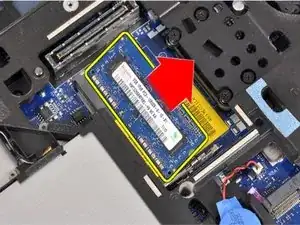

    • Remove the memory module from its connector on the system board by drawing the module from the system board at 45-degree angle.

    • Repeat steps 1 and 2 to add the second memory chip (module).

    • Install battery and base cover.

Abschluss

To reassemble your device, follow these instructions in reverse order.
