Dell Latitude E6330 Screen Replacement

Geschrieben von: Brett Murray
  • Kommentare: 0
Dell Latitude E6330 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

  1. HJF3FwlGHrPTEuVY

    • Turn off computer by holding down the power button

  2. sIgaRnBrs1IWvXCY
    sIgaRnBrs1IWvXCY
    dPOuauOyRMilOpft
    aLohxKLEUjRUGq2N

    • Slide latches out to unlock and remove battery.

  3. Nvjx1wKX5wrQPdHG

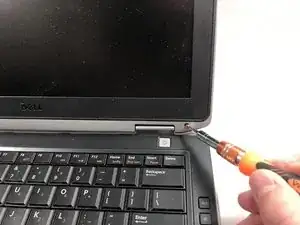

    • Open the laptop and unscrew the 2.5 X 3mm screw in the bottom center of screen

  4. KfQ1NOXGiWKBl3rL

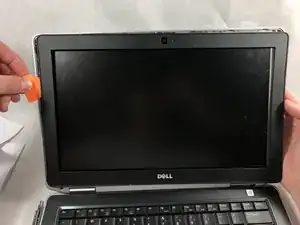

    • Using a spudger, carefully remove of the exterior black frame/cover of the screen

  5. FQ4bN2WaRRALnXZX

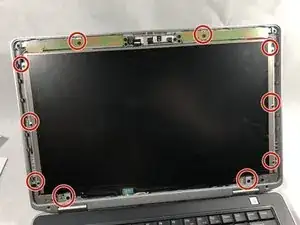

    • Using a Philips head screw driver, screw the ten surrounding 2.5 X 3mm screws on the frame of the screen

  6. SC6NW66XQswHZRfM

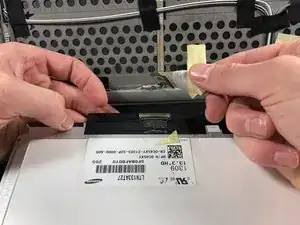

    • Detach the yellow LCD inverted from the back of the screen

  7. nUdRV1UOfVE3eu3N

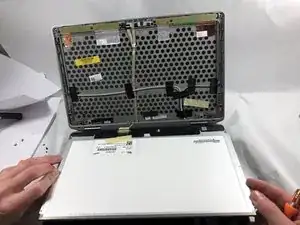

    • Carefully pull off the screen itself

Abschluss

To reassemble your device, follow these instructions in reverse order.
