Dell Latitude E6400 CMOS/Coin Cell Battery Replacement

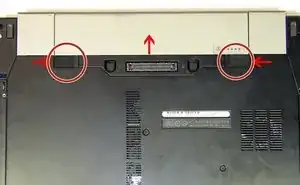

Release the latch or latches connected to the battery that hold it in place.

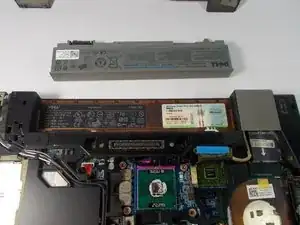

Remove the old battery from its storage bay.

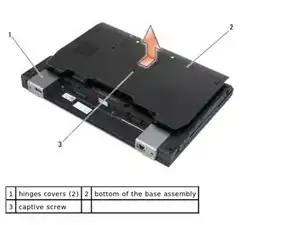

After removing the battery, loosen the screw holding the access panel in place. Then, slide the access panel away from the hinge covers, and lift to remove the access panel..

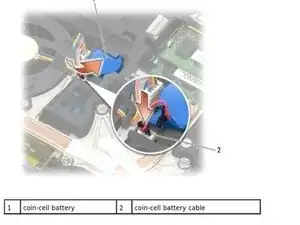

Pry up the coin-cell battery to release the double-stick adhesive tape on the bottom of the coin-cell battery, then lift it out of the computer. Then, disconnect the coin-cell battery cable from the system board.

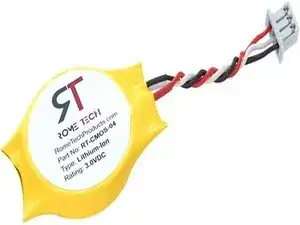

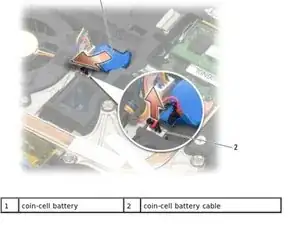

With your replacement battery, coin-cell battery cable to the system board. Then, remove the adhesive backing paper from the coin-cell battery. Slide the battery under the tab, then press down to seal the tape on bottom.
