Dell Latitude E6400 Hard Drive Replacement

Geschrieben von: Aaron Thomas
  • Kommentare: 1
Dell Latitude E6400 Hard Drive Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 - 10 Minuten

Einleitung

    • First, turn off your laptop and disconnect any external adapter.

  2. 2VHpwBTKOMae1Yth

    • Release the latch or latches connected to the battery that hold it in place.

    Oops... I think steps 5-6-7 come before steps 3 and 4... But generally good instructions! Thanks.

    Fro Noho -

  3. sLWEIDQnQBUqAIvO

    • Remove the old battery from its storage bay.

    • Plug in the external AC adapter to fully charge the new battery.

  5. fHavioK6WouDZpkU

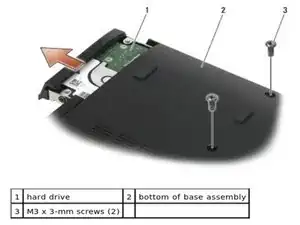

    • After removing the battery, locate and remove the two M3 x 3-mm screws securing the hard drive to the base assembly. Then, slide the hard drive from the base assembly.

  6. o5LbGsm1kVjmrlLo

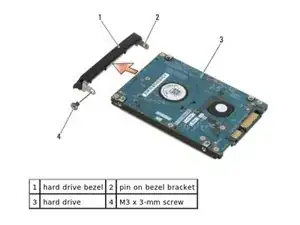

    • Next, remove the M3 x 3-mm screw on the hard drive bezel and remove the hard drive bezel. NOTE: Be mindful not to touch the components of the drive. Doing so could damage the drive.

Abschluss

With your replacement hard drive, reassemble your device by performing the instructions above in reverse order.
