Dell Latitude E6400 Optical Drive Replacement

Geschrieben von: D. K. Labudek
  • Kommentare: 0
Dell Latitude E6400 Optical Drive Replacement

Schwierigkeitsgrad

Very easy

Schritte

2

Zeitaufwand

5 Minuten

Einleitung

  1. PxArXm5aUstUa2LD
    PxArXm5aUstUa2LD
    HvyMSnBZkhpQbXCQ
    ruumaiAgIqTySmgF

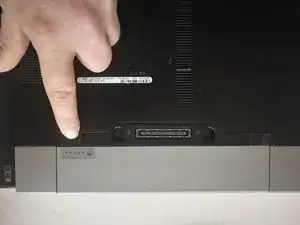

    • Disconnect AC power adaptor.

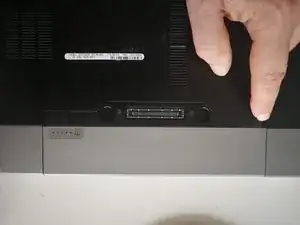

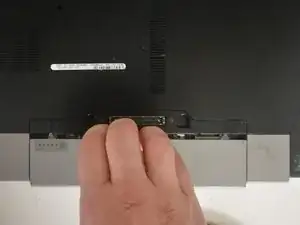

    • Push battery release tabs inwards, and slide the battery out of the computer.

  2. tTWEiuro1i4iCMlJ
    tTWEiuro1i4iCMlJ
    SOLLWBeXTWnTQUSJ
    qtPEEHDYi4WDnJlE

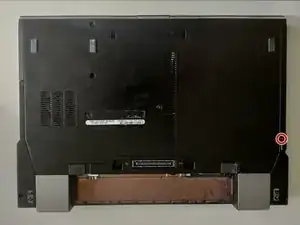

    • Remove the 2.8mm Phillips screw securing the optical drive removal button

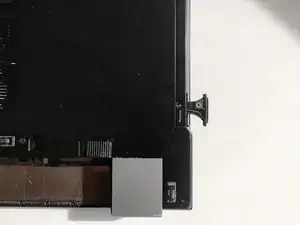

    • Press the removal button on the side of optical drive.

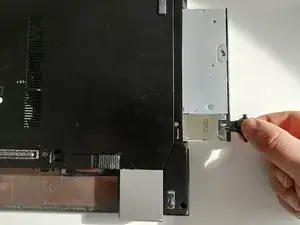

    • Pull the Optical Drive out of the laptop.

Abschluss

To reassemble your device, follow these instructions in reverse order.
